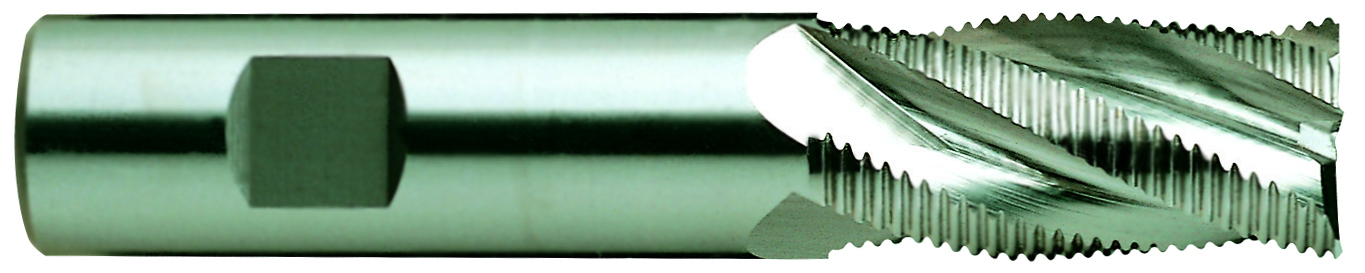

YG-1 E9990016TF E9990TF, TANK-POWER REGULAR LENGTH SQUARE END ROUGHING END MILL, 1/4 IN DIA CUTTER, 3/8 IN SHANK, 3 FLUTES
YG-1 E9990016TF E9990TF, TANK-POWER REGULAR LENGTH SQUARE END ROUGHING END MILL, 1/4 IN DIA CUTTER, 3/8 IN SHANK, 3 FLUTES
SKUPDW~10956919
MFGR #E9990016TF
Your Cost: $65.48/ea
YG-1 Roughing End Mill, Regular Length Square End, Series: E9990TF, Tank-Power, 1/4 in Cutter Dia, 2-7/16 in Overall Length, 5/8 in Maximum Depth of Cut, 3 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Flat Shank, 1-13/16 in Shank Length, Powdered HSS, Uncoated
YG-1 Roughing End Mill, Regular Length Square End, Series: E9990TF, Tank-Power, 1/4 in Cutter Dia, 2-7/16 in Overall Length, 5/8 in Maximum Depth of Cut, 3 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Flat Shank, 1-13/16 in Shank Length, Powdered HSS, Uncoated
Application Steel, Stainless Steel, Cast Iron Catalog Number E9990016TF Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.0700 lb Helix Angle 30 ° Material Premium HSS-PM Maximum Depth of Cut 5/8 in Series E9990 TANK-POWER Shank Length 1-13/16 in Shank Style Flat Shank Type Flat Type Premium HSS-PM, 3 Flute Regular Length Fine Pitch Roughing Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 0.25 in Finish TiALN Length of Cut 0.625 in Number of Flutes 3 Overall Length 2.4375 in Shank Diameter 0.375 in Steel, Stainless Steel, Cast Iron This tank-power rougher is designed for high production metal removal in a wide range of workpiece material It is suitable for a very broad spectrum of materials having up to high tensile strengths In many cases, the milled surfaces are of acceptable quality Powdered-metal high speed steel is tougher and more shock resistant than conventional high speed steel and cobalt steel Number of flutes varies by diameter for optimum feed and cut rate
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel, Stainless Steel, Cast Iron |
| Catalog Number | E9990016TF |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0700 lb |
| Helix Angle | 30 ° |
| Material | Premium HSS-PM |
| Maximum Depth of Cut | 5/8 in |
| Series | E9990 TANK-POWER |
| Shank Length | 1-13/16 in |
| Shank Style | Flat |
| Shank Type | Flat |
| Type | Premium HSS-PM, 3 Flute Regular Length Fine Pitch Roughing |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 0.25 in |
| Finish | TiALN |
| Length of Cut | 0.625 in |
| Number of Flutes | 3 |
| Overall Length | 2.4375 in |
| Shank Diameter | 0.375 in |
| Steel, Stainless Steel, Cast Iron |
| This tank-power rougher is designed for high production metal removal in a wide range of workpiece material |
| It is suitable for a very broad spectrum of materials having up to high tensile strengths |
| In many cases, the milled surfaces are of acceptable quality |
| Powdered-metal high speed steel is tougher and more shock resistant than conventional high speed steel and cobalt steel |
| Number of flutes varies by diameter for optimum feed and cut rate |
