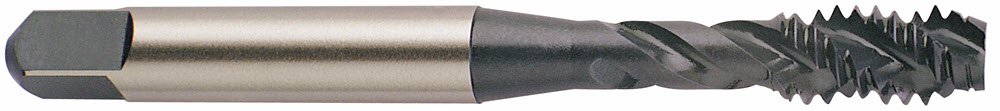

YG-1 E8224 M3.5 - 0.5, D4 3 FLUTED METRIC SPIRAL FLUTED MODIFIED BOTTOMING TICN-COATED DIN OAL ANSI SHANK FOR STAINLESS STEELS UPTO 28HRc
YG-1 E8224 M3.5 - 0.5, D4 3 FLUTED METRIC SPIRAL FLUTED MODIFIED BOTTOMING TICN-COATED DIN OAL ANSI SHANK FOR STAINLESS STEELS UPTO 28HRc
SKUPDW~10956776
MFGR #E8224
Your Cost: $28.35/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number E8224 Chamfer Length 2P-3P Connection 0.141 x 0.11 in Country of Origin KR Diameter 0.1378 in Drill Size 0.1163 in Finish|Coating TiCN Gross Weight Per Pack 0.6500 lb Helix Angle 45 ° Industry Standard DIN/ANSI Length of Square 0.19 in Neck Diameter 0.104 in Overall Length 2.205 in Series E8 Shank Diameter 0.141 in Shank Type Square Square Size 0.11 in Tap Type SPFL Thread Diameter M3.5 Thread Length 0.276 in Thread Standard M TPI or Pitch 0.6 Usable Length 0.646 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSSE-V3 Number of Flutes 3 Thread Limit D4 Thread Size M3.5x0.6
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | E8224 |
| Chamfer Length | 2P-3P |
| Connection | 0.141 x 0.11 in |
| Country of Origin | KR |
| Diameter | 0.1378 in |
| Drill Size | 0.1163 in |
| Finish|Coating | TiCN |
| Gross Weight Per Pack | 0.6500 lb |
| Helix Angle | 45 ° |
| Industry Standard | DIN/ANSI |
| Length of Square | 0.19 in |
| Neck Diameter | 0.104 in |
| Overall Length | 2.205 in |
| Series | E8 |
| Shank Diameter | 0.141 in |
| Shank Type | Square |
| Square Size | 0.11 in |
| Tap Type | SPFL |
| Thread Diameter | M3.5 |
| Thread Length | 0.276 in |
| Thread Standard | M |
| TPI or Pitch | 0.6 |
| Usable Length | 0.646 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSSE-V3 |
| Number of Flutes | 3 |
| Thread Limit | D4 |
| Thread Size | M3.5x0.6 |
