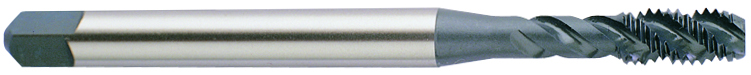

YG-1 E4345 M7 - 1.0, D5 3 FLUTE METRIC SPIRAL FLUTED MODIFIED BOTTOMING TICN-COATED DIN OAL ANSI SHANK FOR STEELS UPTO 35HRc
YG-1 E4345 M7 - 1.0, D5 3 FLUTE METRIC SPIRAL FLUTED MODIFIED BOTTOMING TICN-COATED DIN OAL ANSI SHANK FOR STEELS UPTO 35HRc
SKUPDW~10956708
MFGR #E4345
Your Cost: $53.82/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number E4345 Chamfer Length 2P-3P Connection 0.318 x 0.238 in Country of Origin KR Diameter 0.2756 in Drill Size 0.2398 in Finish|Coating TICN Gross Weight Per Pack 1.1300 lb Helix Angle 45 ° Industry Standard 302A Length of Square 0.38 in Neck Diameter 0.22 in Overall Length 2.72 in Series E4 Shank Diameter 0.318 in Shank Type Square Square Size 0.238 in Tap Type SPFL Thread Diameter M7 Thread Length 0.433 in Thread Standard M TPI or Pitch 1 Usable Length 1.126 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSSE-V3 Number of Flutes 3 Thread Limit D5 Thread Size M7x1
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | E4345 |
| Chamfer Length | 2P-3P |
| Connection | 0.318 x 0.238 in |
| Country of Origin | KR |
| Diameter | 0.2756 in |
| Drill Size | 0.2398 in |
| Finish|Coating | TICN |
| Gross Weight Per Pack | 1.1300 lb |
| Helix Angle | 45 ° |
| Industry Standard | 302A |
| Length of Square | 0.38 in |
| Neck Diameter | 0.22 in |
| Overall Length | 2.72 in |
| Series | E4 |
| Shank Diameter | 0.318 in |
| Shank Type | Square |
| Square Size | 0.238 in |
| Tap Type | SPFL |
| Thread Diameter | M7 |
| Thread Length | 0.433 in |
| Thread Standard | M |
| TPI or Pitch | 1 |
| Usable Length | 1.126 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSSE-V3 |
| Number of Flutes | 3 |
| Thread Limit | D5 |
| Thread Size | M7x1 |
