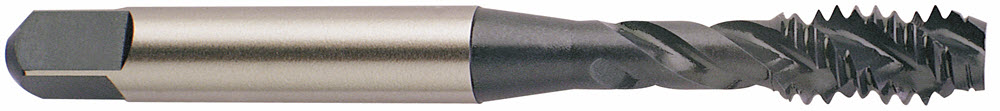

YG-1 E0163 4 - 40, H3 3 FLUTE SPIRAL FLUTED MODIFIED BOTTOMING HARDSLICK COATED TAP FOR STEEL UPTO 38HRc
YG-1 E0163 4 - 40, H3 3 FLUTE SPIRAL FLUTED MODIFIED BOTTOMING HARDSLICK COATED TAP FOR STEEL UPTO 38HRc
SKUPDW~12098527
MFGR #E0163
Your Cost: $33.51/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number E0163 Chamfer Length 2P-3P Connection 0.141 x 0.11 in Country of Origin KR Diameter 0.112 in Drill Size 0.0893 in Finish|Coating Hardslick Gross Weight Per Pack 0.5600 lb Helix Angle 45 ° Industry Standard 302A Length of Square 0.19 in Neck Diameter 0.077 in Overall Length 1.88 in Series E0 Shank Diameter 0.141 in Shank Type Square Square Size 0.11 in Tap Type SPFL Thread Diameter #4 Thread Length 0.236 in Thread Standard UNC TPI or Pitch 40 Usable Length 0.563 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSSE-V3 Number of Flutes 3 Thread Limit H3 Thread Size #4-40
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | E0163 |
| Chamfer Length | 2P-3P |
| Connection | 0.141 x 0.11 in |
| Country of Origin | KR |
| Diameter | 0.112 in |
| Drill Size | 0.0893 in |
| Finish|Coating | Hardslick |
| Gross Weight Per Pack | 0.5600 lb |
| Helix Angle | 45 ° |
| Industry Standard | 302A |
| Length of Square | 0.19 in |
| Neck Diameter | 0.077 in |
| Overall Length | 1.88 in |
| Series | E0 |
| Shank Diameter | 0.141 in |
| Shank Type | Square |
| Square Size | 0.11 in |
| Tap Type | SPFL |
| Thread Diameter | #4 |
| Thread Length | 0.236 in |
| Thread Standard | UNC |
| TPI or Pitch | 40 |
| Usable Length | 0.563 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSSE-V3 |
| Number of Flutes | 3 |
| Thread Limit | H3 |
| Thread Size | #4-40 |
