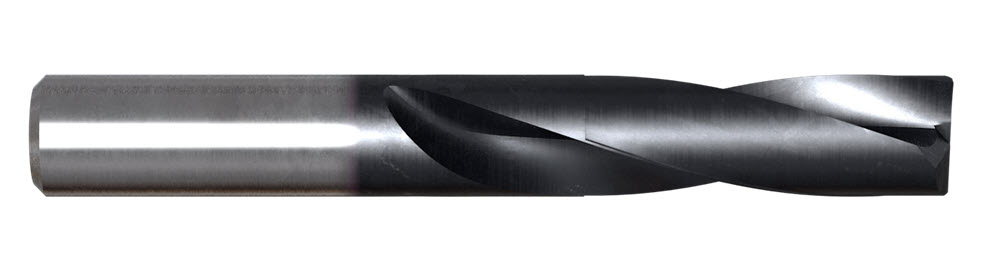

YG-1 DPP447185 18.5 x 20 x 75 x 135 DREAM DRILL FLAT BOTTOM DRILL W/O COOLANT HOLE (2XD)
SKUPDW~12660449
MFGR #DPP447185
Your Cost: $643.66/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Cast Iron Catalog Number DPP447185 Country of Origin KR Cutting Direction Right Hand Flute Length 75 mm Gross Weight Per Pack 1.0100 lb Helix Angle 20 ° Number of Flutes 2 Overall Length 135 mm Point Angle 180 ° Series DPP447 Shank Size 20.0 mm Shank Tolerance h6 Through Coolant No Type Flat Bottom Without Coolant Holes (2XD) Brand YG-1 Manufacturer YG-1 U.S.A. Finish X-Coating Material Carbide Drill Size 18.5 mm Steel, Cast Iron
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Cast Iron |
| Catalog Number | DPP447185 |
| Country of Origin | KR |
| Cutting Direction | Right Hand |
| Flute Length | 75 mm |
| Gross Weight Per Pack | 1.0100 lb |
| Helix Angle | 20 ° |
| Number of Flutes | 2 |
| Overall Length | 135 mm |
| Point Angle | 180 ° |
| Series | DPP447 |
| Shank Size | 20.0 mm |
| Shank Tolerance | h6 |
| Through Coolant | No |
| Type | Flat Bottom Without Coolant Holes (2XD) |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | X-Coating |
| Material | Carbide |
| Drill Size | 18.5 mm |
| Steel, Cast Iron |
