YG-1

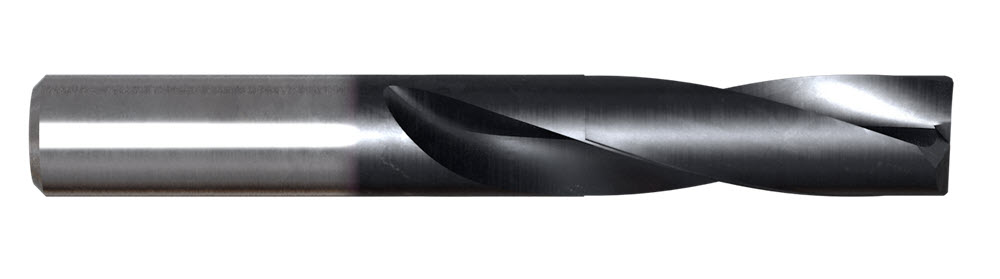

YG-1 DPP447016F 1/4 x 8 x 30 x 70 DREAM DRILL FLAT BOTTOM DRILL W/O COOLANT HOLE (2XD)
YG-1
YG-1 DPP447016F 1/4 x 8 x 30 x 70 DREAM DRILL FLAT BOTTOM DRILL W/O COOLANT HOLE (2XD)
SKU1341960
MFGR #DPP447016F
Your Cost: $68.99/ea
List: YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Cast Iron Catalog Number DPP447016F Country of Origin KR Cutting Depth 2XD Cutting Direction Right Hand Cutting Edge Material Micrograin Carbide Drill Diameter Measurement System Metric Flute Length 30 mm Flute Type Spiral Gross Weight Per Pack 0.0900 lb Helix Angle 20 ° Number of Flutes 2 Overall Length 70 mm Point Angle 180 ° Series DPP447 Shank Size 8 mm Shank Tolerance h6 Shank Type Straight Through Coolant No Type Flat Bottom Without Coolant Holes (2XD) Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Alloy Steel, Cast Iron, Carbon Steel and Pre-Hardened Steel Finish X-Coating Material Carbide Steel, Cast Iron
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Cast Iron |
| Catalog Number | DPP447016F |
| Country of Origin | KR |
| Cutting Depth | 2XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Micrograin Carbide |
| Drill Diameter Measurement System | Metric |
| Flute Length | 30 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0900 lb |
| Helix Angle | 20 ° |
| Number of Flutes | 2 |
| Overall Length | 70 mm |
| Point Angle | 180 ° |
| Series | DPP447 |
| Shank Size | 8 mm |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | No |
| Type | Flat Bottom Without Coolant Holes (2XD) |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Alloy Steel, Cast Iron, Carbon Steel and Pre-Hardened Steel |
| Finish | X-Coating |
| Material | Carbide |
| Steel, Cast Iron |
