YG-1

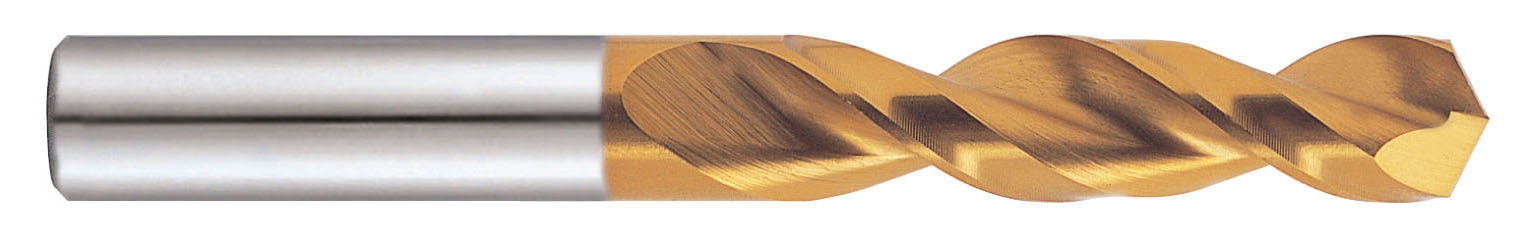

YG-1 DN516103 C x 1-3/8 x 2-1/2 HSS(M35) SCREW MACHINE PARABOLIC TIN COATED DRILL
Custom_Product_Images_Illustration
YG-1
YG-1 DN516103 C x 1-3/8 x 2-1/2 HSS(M35) SCREW MACHINE PARABOLIC TIN COATED DRILL
SKUPDW~10956554
MFGR #DN516103
Your Cost: $8.81/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel Catalog Number DN516103 Country of Origin KR Cutting Depth 1-3/8 Cutting Direction Right Hand Cutting Edge Material M35 HSS-Co 5 Drill Diameter Measurement System Imperial Flute Length 1.375 in Flute Type Parabolic/Right Spiral Gross Weight Per Pack 0.1500 lb Helix Angle 38 ° Industry Standard ANSI Number of Flutes 2 Overall Length 2.5 in Package Quantity 5 pc Point Angle 130 ° Point Length 0.0564 in Point Type Split Series DN516 Shank Size 0.242 in Shank Type Straight Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Carbon Steel, Alloy Steel, Cast Iron, Aluminum, Stainless Steel, Titanium and Mild Steel Finish Tin Coated Material M35 HSS-Co 5 Drill Size 0.242 in Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel |
| Catalog Number | DN516103 |
| Country of Origin | KR |
| Cutting Depth | 1-3/8 |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-Co 5 |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.375 in |
| Flute Type | Parabolic/Right Spiral |
| Gross Weight Per Pack | 0.1500 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 2.5 in |
| Package Quantity | 5 pc |
| Point Angle | 130 ° |
| Point Length | 0.0564 in |
| Point Type | Split |
| Series | DN516 |
| Shank Size | 0.242 in |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Carbon Steel, Alloy Steel, Cast Iron, Aluminum, Stainless Steel, Titanium and Mild Steel |
| Finish | Tin Coated |
| Material | M35 HSS-Co 5 |
| Drill Size | 0.242 in |
| Steel |
