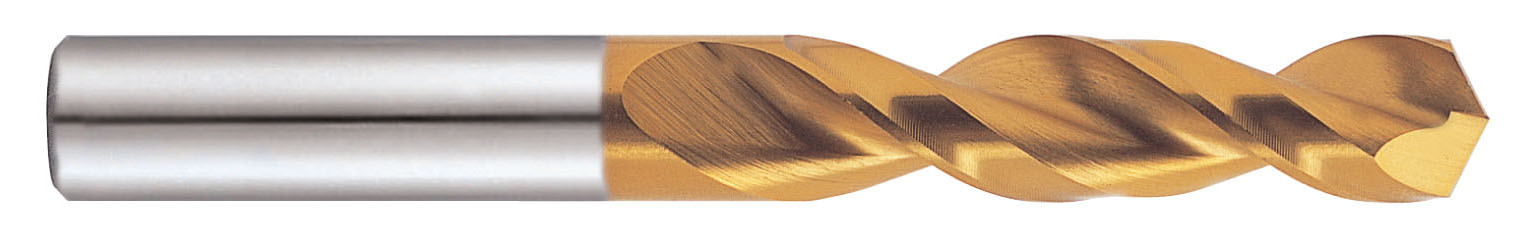

YG-1 DN515245 #45 x 3/4 x 1-3/4 HSS(M35) SCREW MACHINE PARABOLIC TIN COATED DRILL
SKUPDW~10956549
MFGR #DN515245
Your Cost: $4.64/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel Catalog Number DN515245 Country of Origin KR Cutting Depth 3/4 Cutting Direction Right Hand Cutting Edge Material M35 HSS-E-Co 5 Drill Diameter Measurement System Imperial Flute Length 0.75 in Flute Type Parabolic/Right Spiral Gross Weight Per Pack 0.0300 lb Helix Angle 38 ° Industry Standard ANSI Number of Flutes 2 Overall Length 1.75 in Package Quantity 10 pc Point Angle 130 ° Point Length 0.0191 in Point Type Split Series DN515 Shank Size 0.082 in Shank Type Straight Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Alloy Steel and Carbon Steel Finish Tin Coated Material M35 HSS-E-Co 5 Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel |
| Catalog Number | DN515245 |
| Country of Origin | KR |
| Cutting Depth | 3/4 |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-E-Co 5 |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 0.75 in |
| Flute Type | Parabolic/Right Spiral |
| Gross Weight Per Pack | 0.0300 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 1.75 in |
| Package Quantity | 10 pc |
| Point Angle | 130 ° |
| Point Length | 0.0191 in |
| Point Type | Split |
| Series | DN515 |
| Shank Size | 0.082 in |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Alloy Steel and Carbon Steel |
| Finish | Tin Coated |
| Material | M35 HSS-E-Co 5 |
| Steel |
