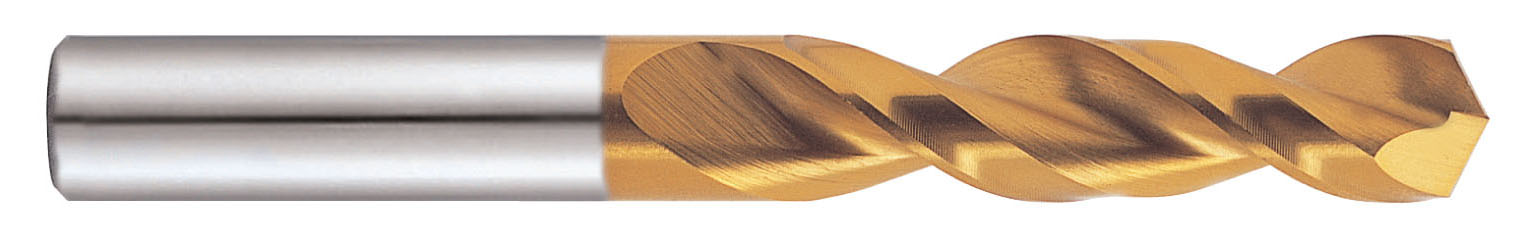

YG-1 DN515230 #30 x 15/16 x 1-15/16 HSS(M35) SCREW MACHINE PARABOLIC TIN COATED DRILL
SKUPDW~10956534
MFGR #DN515230
Your Cost: $4.64/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel Catalog Number DN515230 Country of Origin KR Cutting Depth 15/16 Cutting Direction Right Hand Cutting Edge Material M35 HSS-E-Co 5 Drill Diameter Measurement System Imperial Flute Length 0.9375 in Flute Type Parabolic/Right Spiral Gross Weight Per Pack 0.0400 lb Helix Angle 38 ° Industry Standard ANSI Number of Flutes 2 Overall Length 1.9375 in Package Quantity 5 pc Point Angle 130 ° Point Length 0.03 in Point Type Split Series DN515 Shank Size 0.1285 in Shank Type Straight Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Alloy Steel and Carbon Steel Finish Tin Coated Material M35 HSS-E-Co 5 Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel |
| Catalog Number | DN515230 |
| Country of Origin | KR |
| Cutting Depth | 15/16 |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-E-Co 5 |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 0.9375 in |
| Flute Type | Parabolic/Right Spiral |
| Gross Weight Per Pack | 0.0400 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 1.9375 in |
| Package Quantity | 5 pc |
| Point Angle | 130 ° |
| Point Length | 0.03 in |
| Point Type | Split |
| Series | DN515 |
| Shank Size | 0.1285 in |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute Screw Machine, Tin coated |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Alloy Steel and Carbon Steel |
| Finish | Tin Coated |
| Material | M35 HSS-E-Co 5 |
| Steel |
