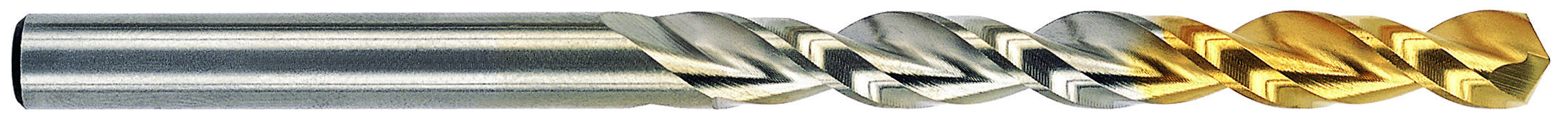

YG-1 DLGP513106 Worm Pattern Jobber Length Drill, F, 4-1/8 in L, HSS-Co 5, Gold-P/TiN Coated
SKUPDW~10956456
MFGR #DLGP513106
Your Cost: $7.55/ea
YG-1 Jobber Length Drill, Worm Pattern, Series: DLGP, F, 4-1/8 in Overall Length, 2.88 in Cutting Depth, Parabolic Flute, 2.88 in Flute Length, 1/4 in Shank, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting, HSS-Co 5 Cutting Edge, HSS-Co 5, Gold-P/TiN Coated
YG-1 Jobber Length Drill, Worm Pattern, Series: DLGP, F, 4-1/8 in Overall Length, 2.88 in Cutting Depth, Parabolic Flute, 2.88 in Flute Length, 1/4 in Shank, Straight Shank, 130 deg Point, Split Point, Right Hand Cutting, HSS-Co 5 Cutting Edge, HSS-Co 5, Gold-P/TiN Coated
Application Steel Catalog Number DLGP513106 Country of Origin KR Cutting Depth 2-7/8 in Cutting Direction Right Hand Cutting Edge Material M35 HSS-Co 5% Drill Diameter Measurement System Imperial Flute Length 2.875 in Flute Type Parabolic Gross Weight Per Pack 0.4600 lb Helix Angle 38 ° Industry Standard ANSI Letter|Wire Size F Number of Flutes 2 Overall Length 4.125 in Point Length 0.0599 in Point Type Split Series DLGP513 Shank Size 0.257 in Shank Type Straight Standards ANSI Specified Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Finish TiN Material HSS Co5 Point Angle 130 ° Steel Improved chip removal in most materials, especially in deep drilling applications|Bright body TiN coating on working part
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | DLGP513106 |
| Country of Origin | KR |
| Cutting Depth | 2-7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-Co 5% |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 2.875 in |
| Flute Type | Parabolic |
| Gross Weight Per Pack | 0.4600 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Letter|Wire Size | F |
| Number of Flutes | 2 |
| Overall Length | 4.125 in |
| Point Length | 0.0599 in |
| Point Type | Split |
| Series | DLGP513 |
| Shank Size | 0.257 in |
| Shank Type | Straight |
| Standards | ANSI Specified |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | TiN |
| Material | HSS Co5 |
| Point Angle | 130 ° |
| Steel |
| Improved chip removal in most materials, especially in deep drilling applications|Bright body TiN coating on working part |
