YG-1

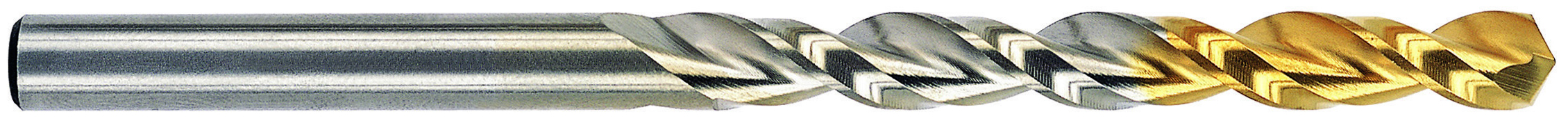

YG-1 DLGP511030 15/32 x 4-5/16 x 5-3/4 HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES
Custom_Product_Images_Illustration
YG-1
YG-1 DLGP511030 15/32 x 4-5/16 x 5-3/4 HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES
SKU1394999
MFGR #DLGP511030
Your Cost: $10.52/ea
List: YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Applicable Materials Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel Application Steel Catalog Number DLGP511030 Country of Origin KR Cutting Depth 4-5/16 Cutting Direction Right Hand Cutting Edge Material M35 HSS-Co 5% Drill Diameter Measurement System Imperial Flute Length 4.3125 in Flute Type Parabolic Gross Weight Per Pack 0.9400 lb Helix Angle 38 ° Industry Standard ANSI Number of Flutes 2 Overall Length 5.75 in Point Length 0.1093 in Point Type Split Series DLGP511 Shank Size 0.4688 in Shank Type Straight Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Finish TiN Material HSS Co5 Point Angle 130 ° Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Applicable Materials | Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel |
| Application | Steel |
| Catalog Number | DLGP511030 |
| Country of Origin | KR |
| Cutting Depth | 4-5/16 |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-Co 5% |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 4.3125 in |
| Flute Type | Parabolic |
| Gross Weight Per Pack | 0.9400 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 5.75 in |
| Point Length | 0.1093 in |
| Point Type | Split |
| Series | DLGP511 |
| Shank Size | 0.4688 in |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | TiN |
| Material | HSS Co5 |
| Point Angle | 130 ° |
| Steel |
