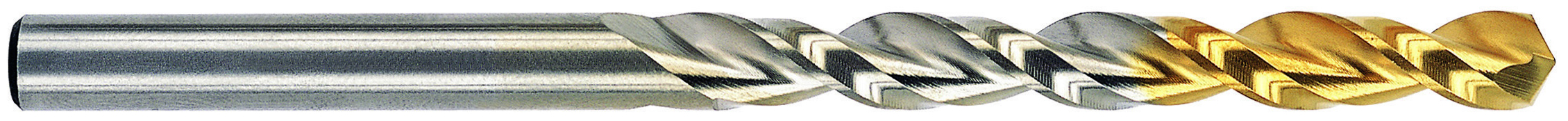

YG-1 DLGP511017 17/64 x 2-7/8 x 4-1/8 HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES
Custom_Product_Images_Illustration
YG-1 DLGP511017 17/64 x 2-7/8 x 4-1/8 HSS(M35) JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES
SKUPDW~10956386
MFGR #DLGP511017
Your Cost: $6.21/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Applicable Materials Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel Application Steel Catalog Number DLGP511017 Country of Origin KR Cutting Depth 2-7/8 Cutting Direction Right Hand Cutting Edge Material M35 HSS-Co 5% Drill Diameter Measurement System Imperial Flute Length 2.875 in Flute Type Parabolic Gross Weight Per Pack 0.4900 lb Helix Angle 38 ° Industry Standard ANSI Number of Flutes 2 Overall Length 4.125 in Point Length 0.0619 in Point Type Split Series DLGP511 Shank Size 0.2656 in Shank Type Straight Through Coolant No Type HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated Brand YG-1 Manufacturer YG-1 U.S.A. Finish TiN Material HSS Co5 Point Angle 130 ° Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Applicable Materials | Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel |
| Application | Steel |
| Catalog Number | DLGP511017 |
| Country of Origin | KR |
| Cutting Depth | 2-7/8 |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M35 HSS-Co 5% |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 2.875 in |
| Flute Type | Parabolic |
| Gross Weight Per Pack | 0.4900 lb |
| Helix Angle | 38 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 4.125 in |
| Point Length | 0.0619 in |
| Point Type | Split |
| Series | DLGP511 |
| Shank Size | 0.2656 in |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo5, Straight Shank Parabolic Flute, Gold-P Coated |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | TiN |
| Material | HSS Co5 |
| Point Angle | 130 ° |
| Steel |
