YG-1

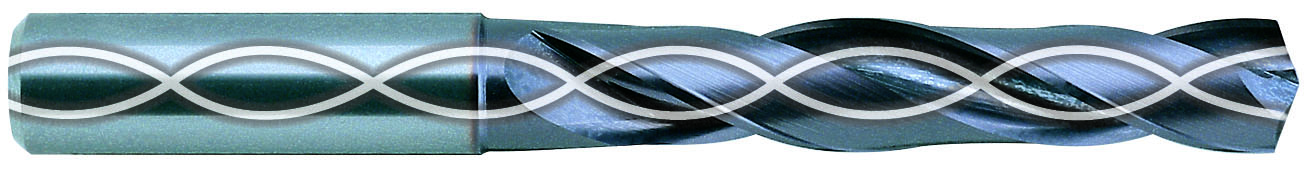

YG-1 DH406046 4.6 x 6.0 x 66 x 24 CARBIDE DREAM DRILL W/ COOLANT (3XD) - METRIC
Custom_Product_Images_Illustration
YG-1
YG-1 DH406046 4.6 x 6.0 x 66 x 24 CARBIDE DREAM DRILL W/ COOLANT (3XD) - METRIC
SKUPDW~10954997
MFGR #DH406046
Your Cost: $115.78/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel Catalog Number DH406046 Country of Origin KR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 24 mm Flute Type Spiral Gross Weight Per Pack 0.0400 lb Helix Angle 30 ° Industry Standard DIN 6537 Number of Flutes 2 Overall Length 66 mm Point Angle 140 ° Point Length 0.8371 mm Point Type Split Series DH406 Shank Size 6 mm Shank Tolerance h6 Shank Type Straight Through Coolant Yes Type GENERAL PURPOSE Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals Finish TiAlN Material Carbide Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel |
| Catalog Number | DH406046 |
| Country of Origin | KR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 24 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0400 lb |
| Helix Angle | 30 ° |
| Industry Standard | DIN 6537 |
| Number of Flutes | 2 |
| Overall Length | 66 mm |
| Point Angle | 140 ° |
| Point Length | 0.8371 mm |
| Point Type | Split |
| Series | DH406 |
| Shank Size | 6 mm |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | Yes |
| Type | GENERAL PURPOSE |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals |
| Finish | TiAlN |
| Material | Carbide |
| Steel |
