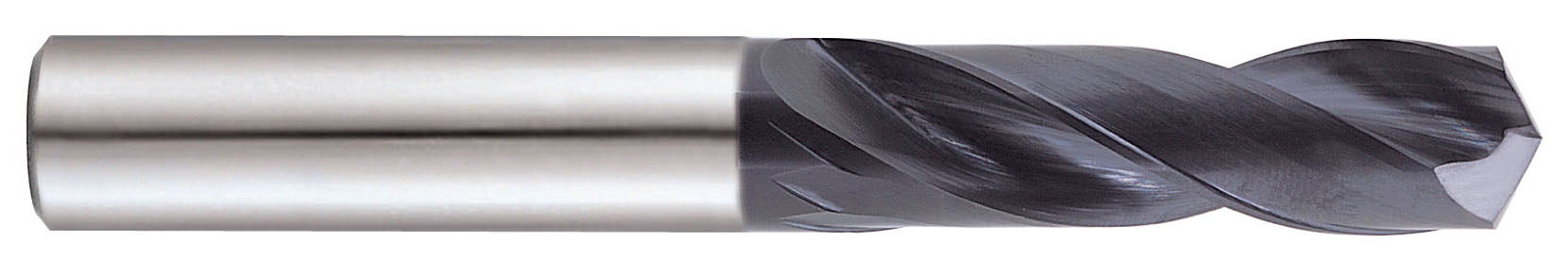

YG-1 DH404105 Short Length Dream Drill, 10.5 mm Dia x 89 mm L, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
YG-1 DH404105 Short Length Dream Drill, 10.5 mm Dia x 89 mm L, Carbide, TiAlN Coated
SKU535705
MFGR #DH404105
Your Cost: $82.60/ea
List: YG-1 Short Length Dream Drill, Series: DH404, 10.5 mm Dia, 89 mm Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 43 mm Flute Length, 10-1/2 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
YG-1 Short Length Dream Drill, Series: DH404, 10.5 mm Dia, 89 mm Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 43 mm Flute Length, 10-1/2 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
Application Steel Catalog Number DH404105 Country of Origin KR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 10.5 mm Drill Dia Measurement System Metric Drill Diameter Measurement System Imperial/Metric Flute Length 43 mm Flute Type Spiral Gross Weight Per Pack 0.2100 lb Helix Angle 30 ° Industry Standard DIN 6539 Number of Flutes 2 Overall Length 89 mm Point Angle 140 ° Point Length 1.9109 mm Point Type Split Series DH404 Shank Size 10.5 mm Shank Tolerance h6 Shank Type Straight Standards DIN 6539 Through Coolant No Type General Purpose Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals Finish TiALN Material Carbide Steel Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling Center drilling is not required Bushing is not necessary Reaming is not required Good chip removal Powerful drilling 30 deg Helix angle H6, h7 Tolerance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | DH404105 |
| Country of Origin | KR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 10.5 mm |
| Drill Dia Measurement System | Metric |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 43 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.2100 lb |
| Helix Angle | 30 ° |
| Industry Standard | DIN 6539 |
| Number of Flutes | 2 |
| Overall Length | 89 mm |
| Point Angle | 140 ° |
| Point Length | 1.9109 mm |
| Point Type | Split |
| Series | DH404 |
| Shank Size | 10.5 mm |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Standards | DIN 6539 |
| Through Coolant | No |
| Type | General Purpose |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals |
| Finish | TiALN |
| Material | Carbide |
| Steel |
| Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling |
| Center drilling is not required |
| Bushing is not necessary |
| Reaming is not required |
| Good chip removal |
| Powerful drilling |
| 30 deg Helix angle |
| H6, h7 Tolerance |
