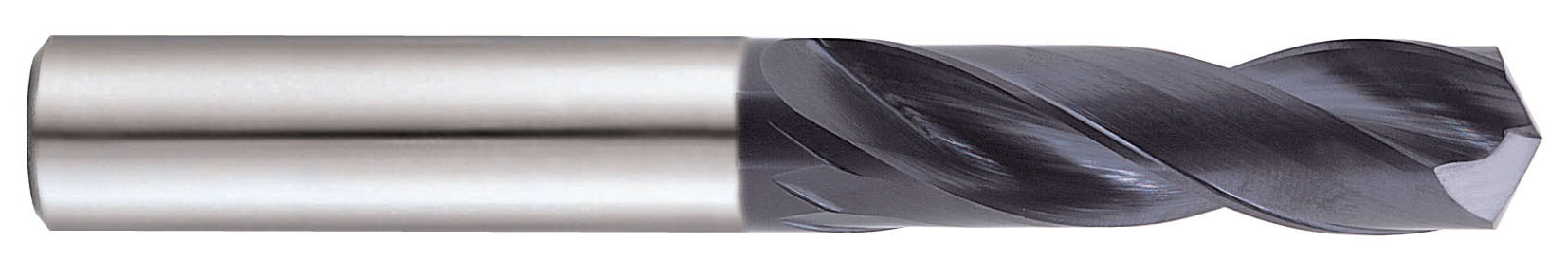

YG-1 DH404095 Short Length Dream Drill, 9.5 mm Dia x 84 mm L, Carbide, TiAlN Coated

Short Length Drill Bits
505793 MFG #: DH404095
YG-1
70.49000 / ea
YG-1 Short Length Dream Drill, Series: DH404, 9.5 mm Dia, 84 mm Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 40 mm Flute Length, 9-1/2 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
QTY
  • Features
Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling
Center drilling is not required
Bushing is not necessary
Reaming is not required
Good chip removal
Powerful drilling
30 deg Helix angle
H6, h7 Tolerance
