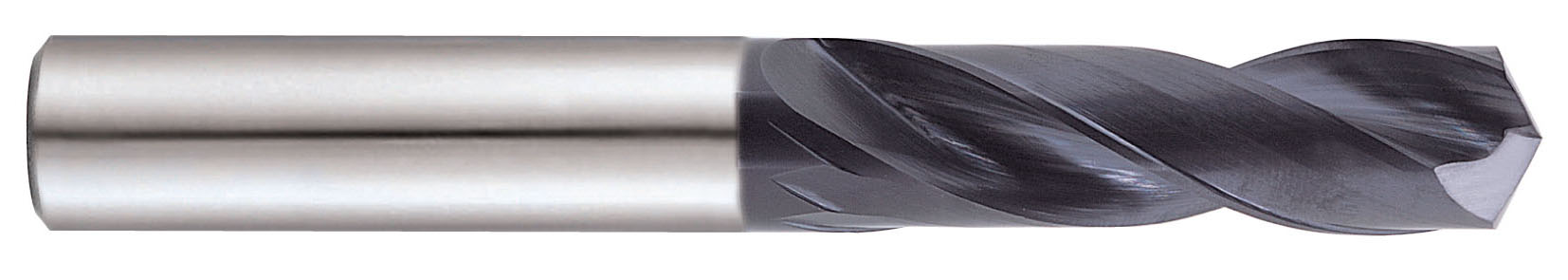

YG-1 DH404071 Short Length Dream Drill, 7.1 mm Dia x 74 mm L, Carbide, TiAlN Coated
Short Length Drill Bits
535589
MFG #: DH404071
YG-1
48.71000
/ ea
YG-1 Short Length Dream Drill, Series: DH404, 7.1 mm Dia, 74 mm Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 34 mm Flute Length, 7.1 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
- Applications
- Features
Steel |
Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling |
Center drilling is not required |
Bushing is not necessary |
Reaming is not required |
Good chip removal |
Powerful drilling |
30 deg Helix angle |
H6, h7 Tolerance |
