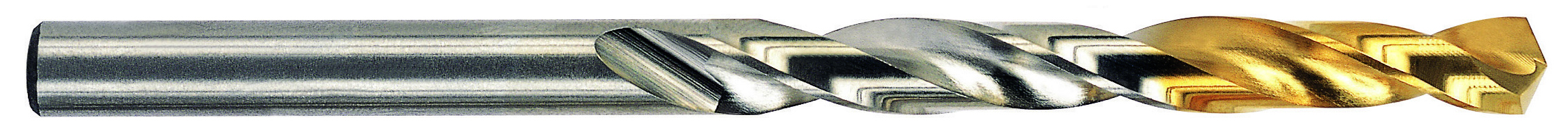

YG-1 D2GP185028 7/16 x 4-1/16 x 5-1/2 HSS(M42) JOBBERS LENGTH STRAIGHT SHANK GOLD-P DRILLS (5PCS)
Custom_Product_Images_Illustration
YG-1 D2GP185028 7/16 x 4-1/16 x 5-1/2 HSS(M42) JOBBERS LENGTH STRAIGHT SHANK GOLD-P DRILLS (5PCS)
SKU685690
MFGR #D2GP185028
Your Cost: $10.77/ea
List: YG-1 Jobber Length Drill, Series: D2GP185, 7/16 in Dia, 5-1/2 in Overall Length, 4-1/16 in Cutting Depth, Slow Spiral Flute, 4-1/16 in Flute Length, 7/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Gold-P/TiN Coated, Applicable Materials: Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron Applicable
YG-1 Jobber Length Drill, Series: D2GP185, 7/16 in Dia, 5-1/2 in Overall Length, 4-1/16 in Cutting Depth, Slow Spiral Flute, 4-1/16 in Flute Length, 7/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Gold-P/TiN Coated, Applicable Materials: Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron Applicable
Applicable Materials Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron Application Steel Catalog Number D2GP185028 Country of Origin KR Cutting Depth 4-1/16 in Cutting Direction Right Hand Cutting Edge Material HSS-Co 8 Diameter 7/16 in Drill Size 0.4375 in Flute Length 4.0625 in Flute Type Slow Spiral Gross Weight Per Pack 0.8100 lb Helix Angle 30 ° Industry Standard ANSI Number of Flutes 2 Overall Length 5.5 in Point Length 0.0906 in Point Type Split Series D2GP185 Shank Size 0.4375 in Shank Type Straight Standards ANSI Specified Through Coolant No Type HSSCo8, Straight Shank, Gold-P Coated Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Finish TiN Material HSS Co8 Point Angle 135 ° Steel Wider flute gullets for maximum chip removal
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Applicable Materials | Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron |
| Application | Steel |
| Catalog Number | D2GP185028 |
| Country of Origin | KR |
| Cutting Depth | 4-1/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS-Co 8 |
| Diameter | 7/16 in |
| Drill Size | 0.4375 in |
| Flute Length | 4.0625 in |
| Flute Type | Slow Spiral |
| Gross Weight Per Pack | 0.8100 lb |
| Helix Angle | 30 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 5.5 in |
| Point Length | 0.0906 in |
| Point Type | Split |
| Series | D2GP185 |
| Shank Size | 0.4375 in |
| Shank Type | Straight |
| Standards | ANSI Specified |
| Through Coolant | No |
| Type | HSSCo8, Straight Shank, Gold-P Coated |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | TiN |
| Material | HSS Co8 |
| Point Angle | 135 ° |
| Steel |
| Wider flute gullets for maximum chip removal |
