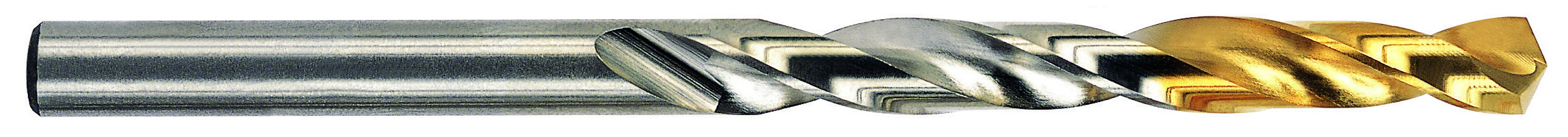

YG-1 D2GP185022 Jobber Length Drill, 11/32 in Dia x 4-3/4 in L, HSS-Co 8, Gold-P/TiN Coated
Custom_Product_Images_Illustration
YG-1 D2GP185022 Jobber Length Drill, 11/32 in Dia x 4-3/4 in L, HSS-Co 8, Gold-P/TiN Coated
SKU782406
MFGR #D2GP185022
Your Cost: $6.92/ea
List: YG-1 Jobber Length Drill, Series: D2GP185, 11/32 in Dia, 4-3/4 in Overall Length, 3-7/16 in Cutting Depth, Slow Spiral Flute, 3-7/16 in Flute Length, 11/32 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Gold-P/TiN Coated, Applicable Materials: Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron Applicable
YG-1 Jobber Length Drill, Series: D2GP185, 11/32 in Dia, 4-3/4 in Overall Length, 3-7/16 in Cutting Depth, Slow Spiral Flute, 3-7/16 in Flute Length, 11/32 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Gold-P/TiN Coated, Applicable Materials: Steel, Cast Steel, Alloyed and Non-Alloyed, Gray Cast Iron, Graphite and Malleable Cast Iron Applicable
Applicable Materials Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel Application Steel Catalog Number D2GP185022 Country of Origin KR Cutting Depth 3-7/16 in Cutting Direction Right Hand Cutting Edge Material M42 HSS-Co 8% Diameter 11/32 in Drill Diameter Measurement System Imperial Flute Length 3.4375 in Flute Type Spiral Gross Weight Per Pack 0.4500 lb Helix Angle 30 ° Industry Standard ANSI Number of Flutes 2 Overall Length 4.75 in Point Length 0.0712 in Point Type Split Series D2GP185 Shank Size 0.3438 in Shank Type Straight Standards ANSI Specified Through Coolant No Type HSSCo8, Straight Shank, Gold-P Coated Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Finish TiN Material HSS Co8 Point Angle 135 ° Steel Wider flute gullets for maximum chip removal
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Applicable Materials | Alloyed and Non-Alloyed Cast Steel, Gray Cast Iron, Graphite and Malleable Cast Iron/Steel |
| Application | Steel |
| Catalog Number | D2GP185022 |
| Country of Origin | KR |
| Cutting Depth | 3-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Diameter | 11/32 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 3.4375 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.4500 lb |
| Helix Angle | 30 ° |
| Industry Standard | ANSI |
| Number of Flutes | 2 |
| Overall Length | 4.75 in |
| Point Length | 0.0712 in |
| Point Type | Split |
| Series | D2GP185 |
| Shank Size | 0.3438 in |
| Shank Type | Straight |
| Standards | ANSI Specified |
| Through Coolant | No |
| Type | HSSCo8, Straight Shank, Gold-P Coated |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Finish | TiN |
| Material | HSS Co8 |
| Point Angle | 135 ° |
| Steel |
| Wider flute gullets for maximum chip removal |
