YG-1 64359 E2195 Center Cutting Regular Length Square End End Mill, 3/4 in Dia Cutter, 3/4 in Shank, 4 Flutes, M42 HSS-Co 8
Custom_Product_Images_Illustration

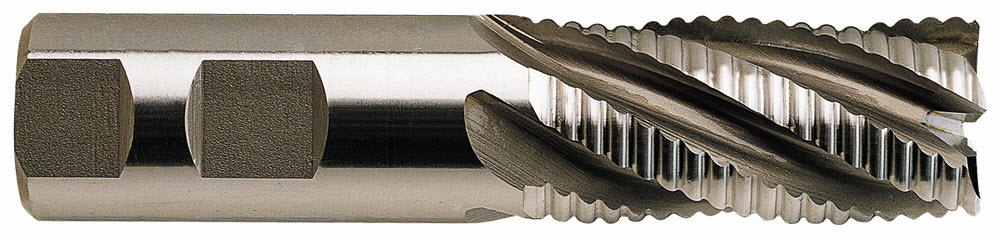

YG-1 64359 E2195 Center Cutting Regular Length Square End End Mill, 3/4 in Dia Cutter, 3/4 in Shank, 4 Flutes, M42 HSS-Co 8
SKU429305
MFGR #64359
Your Cost: $55.82/ea
List: YG-1 End Mill, Center Cutting Regular Length Square End, Series: E2195, 3/4 in Cutter Dia, 3-7/8 in Overall Length, 1-5/8 in Maximum Depth of Cut, 4 Flutes, 3/4 in Shank Dia, 30 deg Helix Angle, Flat Shank, 2-1/4 in Shank Length, M42 HSS-Co 8, Uncoated
YG-1 End Mill, Center Cutting Regular Length Square End, Series: E2195, 3/4 in Cutter Dia, 3-7/8 in Overall Length, 1-5/8 in Maximum Depth of Cut, 4 Flutes, 3/4 in Shank Dia, 30 deg Helix Angle, Flat Shank, 2-1/4 in Shank Length, M42 HSS-Co 8, Uncoated
Application Steel Catalog Number 64359 Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.4500 lb Helix Angle 30 ° Material HSSCo8 Maximum Depth of Cut 1-5/8 in Series E2195 Shank Length 2-1/4 in Shank Type Flat Type HSSCo8 4 Flute Regular Coarse Pitch Roughing Center Cutting Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 0.75 in Finish Bright Length of Cut 1.625 in Number of Flutes 4 Overall Length 3.875 in Shank Diameter 0.75 in Steel This general purpose rougher is designed for high production metal removal in a wide range of workpiece material It is recommended for cutting steel grades and many non-ferrous materials Roughing end mills have chip-breaking cutting edges that remove material in less time than conventional end mills Coarse-pitch tooth design and tool geometry are suitable for high production metal removal of cutting steel grades and many nonferrous materials Number of flutes varies by diameter for optimum feed and cut rates Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling Cobalt steel resists abrasion and high cutting temperatures and has higher feed rates than high speed steel For cutting steel grades and many non-ferrous materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | 64359 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.4500 lb |
| Helix Angle | 30 ° |
| Material | HSSCo8 |
| Maximum Depth of Cut | 1-5/8 in |
| Series | E2195 |
| Shank Length | 2-1/4 in |
| Shank Type | Flat |
| Type | HSSCo8 4 Flute Regular Coarse Pitch Roughing Center Cutting |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 0.75 in |
| Finish | Bright |
| Length of Cut | 1.625 in |
| Number of Flutes | 4 |
| Overall Length | 3.875 in |
| Shank Diameter | 0.75 in |
| Steel |
| This general purpose rougher is designed for high production metal removal in a wide range of workpiece material |
| It is recommended for cutting steel grades and many non-ferrous materials |
| Roughing end mills have chip-breaking cutting edges that remove material in less time than conventional end mills |
| Coarse-pitch tooth design and tool geometry are suitable for high production metal removal of cutting steel grades and many nonferrous materials |
| Number of flutes varies by diameter for optimum feed and cut rates |
| Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling |
| Cobalt steel resists abrasion and high cutting temperatures and has higher feed rates than high speed steel |
| For cutting steel grades and many non-ferrous materials |
