YG-1

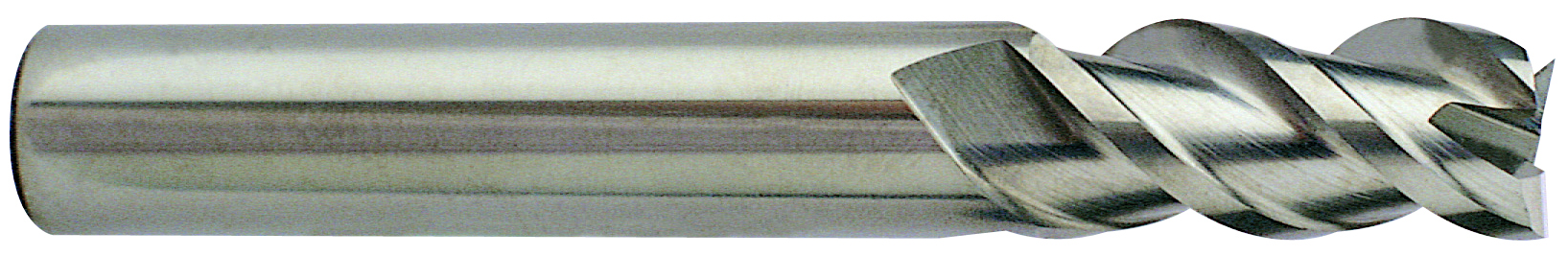

YG-1 28593TC E5981, ALU-POWER REGULAR LENGTH SQUARE END END MILL, 1/2 IN DIA CUTTER, 1/2 IN SHANK, 3 FLUTES, TiCN COATED
YG-1
YG-1 28593TC E5981, ALU-POWER REGULAR LENGTH SQUARE END END MILL, 1/2 IN DIA CUTTER, 1/2 IN SHANK, 3 FLUTES, TiCN COATED
SKU683859
MFGR #28593TC
Your Cost: $61.25/ea
List: YG-1 End Mill, Regular Length Square End, Series: E5981, ALU-Power, 1/2 in Cutter Dia, 3 in Overall Length, 1-1/4 in Maximum Depth of Cut, 3 Flutes, 1/2 in Shank Dia, Right Hand Cutting, 45 deg Helix Angle, Plain Shank, 1-3/4 in Shank Length, Solid Micro Grain Carbide, TiCN Coated
YG-1 End Mill, Regular Length Square End, Series: E5981, ALU-Power, 1/2 in Cutter Dia, 3 in Overall Length, 1-1/4 in Maximum Depth of Cut, 3 Flutes, 1/2 in Shank Dia, Right Hand Cutting, 45 deg Helix Angle, Plain Shank, 1-3/4 in Shank Length, Solid Micro Grain Carbide, TiCN Coated
Application Non-Ferrous Materials Catalog Number 28593TC Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.2600 lb Helix Angle 45 ° Material Carbide Maximum Depth of Cut 1-1/4 in Series E5981 Shank Length 1-3/4 in Shank Style Plain Shank Type Plain Type Carbide, 3 Flute 45° Helix Regular Length Square Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 0.5 in Finish TiCN Length of Cut 1.25 in Number of Flutes 3 Overall Length 3 in Shank Diameter 0.5 in Non-Ferrous Materials 3 flute and 45 deg helix allow harmonic balance at high speed condition and smooth cutting Improved surface roughness-cylindrical margin which is controlled tightly Maximum-stock removal, chip ejection, stability For high velocity milling of aluminum and other non-ferrous materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | 28593TC |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.2600 lb |
| Helix Angle | 45 ° |
| Material | Carbide |
| Maximum Depth of Cut | 1-1/4 in |
| Series | E5981 |
| Shank Length | 1-3/4 in |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 45° Helix Regular Length Square |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 0.5 in |
| Finish | TiCN |
| Length of Cut | 1.25 in |
| Number of Flutes | 3 |
| Overall Length | 3 in |
| Shank Diameter | 0.5 in |
| Non-Ferrous Materials |
| 3 flute and 45 deg helix allow harmonic balance at high speed condition and smooth cutting |
| Improved surface roughness-cylindrical margin which is controlled tightly |
| Maximum-stock removal, chip ejection, stability |
| For high velocity milling of aluminum and other non-ferrous materials |
