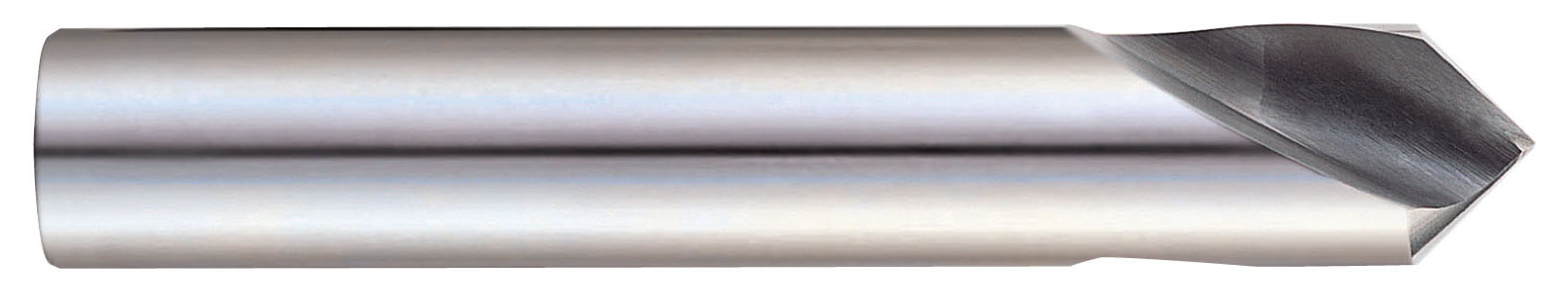

YG-1 0481L Spotting Drill, 3/4 in Dia x 5.16 in L, HSS-Co 8, Uncoated
Custom_Product_Images_Illustration
YG-1 0481L Spotting Drill, 3/4 in Dia x 5.16 in L, HSS-Co 8, Uncoated
SKU657671
MFGR #0481L
Your Cost: $34.97/ea
List: YG-1 Spotting Drill, Series: D2N90, 3/4 in Dia, 5.16 in Overall Length, 1.968 in Cutting Depth, Slow Spiral Flute, 1.968 in Flute Length, 3/4 in Shank, Straight Shank, 90 deg Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Uncoated, Applicable Materials: Carbon Steels, Alloy Steels, Aluminum, Stainless Steel, Mild Steel and Bronze Applicable
YG-1 Spotting Drill, Series: D2N90, 3/4 in Dia, 5.16 in Overall Length, 1.968 in Cutting Depth, Slow Spiral Flute, 1.968 in Flute Length, 3/4 in Shank, Straight Shank, 90 deg Point, Right Hand Cutting, HSS-Co 8 Cutting Edge, HSS-Co 8, Uncoated, Applicable Materials: Carbon Steels, Alloy Steels, Aluminum, Stainless Steel, Mild Steel and Bronze Applicable
Applicable Materials Carbon Steel, Alloy Steel, Aluminum, Stainless Steel, Mild Steel and Bronze Application Steel Catalog Number 0481L Country of Origin KR Cutting Depth 1.968 in Cutting Direction Right Hand Cutting Edge Material M42 HSS-Co 8 Flute Length 1.968 in Flute Type Spiral Gross Weight Per Pack 0.5500 lb Number of Flutes 2 Point Angle 90 ° Point Length 0.375 in Series D2N90 Shank Size 0.75 in Shank Tolerance h6 Shank Type Straight Through Coolant No Type HSSCo8 90 Degree NC Spotting Drills, 8% Cobalt Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Diameter 0.75 in Finish Uncoated Material HSS Co8 Overall Length 5.16 in Steel A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Applicable Materials | Carbon Steel, Alloy Steel, Aluminum, Stainless Steel, Mild Steel and Bronze |
| Application | Steel |
| Catalog Number | 0481L |
| Country of Origin | KR |
| Cutting Depth | 1.968 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Flute Length | 1.968 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.5500 lb |
| Number of Flutes | 2 |
| Point Angle | 90 ° |
| Point Length | 0.375 in |
| Series | D2N90 |
| Shank Size | 0.75 in |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | No |
| Type | HSSCo8 90 Degree NC Spotting Drills, 8% Cobalt |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Diameter | 0.75 in |
| Finish | Uncoated |
| Material | HSS Co8 |
| Overall Length | 5.16 in |
| Steel |
| A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously |
| A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously |
