YG-1

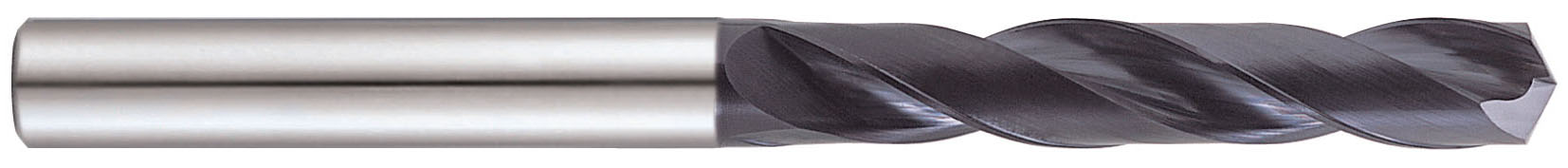

YG-1 0281ATF Short Length Dream Drill, 7/16 in Dia x 4-5/8 in L, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
YG-1
YG-1 0281ATF Short Length Dream Drill, 7/16 in Dia x 4-5/8 in L, Carbide, TiAlN Coated
SKU656332
MFGR #0281ATF
Your Cost: $109.14/ea
List: YG-1 Short Length Dream Drill, Series: DH414, 7/16 in Dia, 4-5/8 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 2-13/16 in Flute Length, 7/16 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
YG-1 Short Length Dream Drill, Series: DH414, 7/16 in Dia, 4-5/8 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 2-13/16 in Flute Length, 7/16 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
Application Steel Catalog Number 0281ATF Country of Origin KR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 7/16 in Flute Length 2.8125 in Flute Type Slow Spiral Gross Weight Per Pack 0.2900 lb Helix Angle 30 ° Number of Flutes 2 Overall Length 4.625 in Point Angle 140 ° Point Length 0.0796 in Point Type Split Series DH414 Shank Size 0.4375 in Shank Tolerance h6 Shank Type Straight Through Coolant No Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Finish TiALN Material Carbide Drill Size 0.4375 in Steel Excellent positioning Center drilling is not required Bushing is not necessary Reaming is not required Good chip removal Powerful drilling 30 deg Helix angle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | 0281ATF |
| Country of Origin | KR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 7/16 in |
| Flute Length | 2.8125 in |
| Flute Type | Slow Spiral |
| Gross Weight Per Pack | 0.2900 lb |
| Helix Angle | 30 ° |
| Number of Flutes | 2 |
| Overall Length | 4.625 in |
| Point Angle | 140 ° |
| Point Length | 0.0796 in |
| Point Type | Split |
| Series | DH414 |
| Shank Size | 0.4375 in |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | No |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic |
| Finish | TiALN |
| Material | Carbide |
| Drill Size | 0.4375 in |
| Steel |
| Excellent positioning |
| Center drilling is not required |
| Bushing is not necessary |
| Reaming is not required |
| Good chip removal |
| Powerful drilling |
| 30 deg Helix angle |
