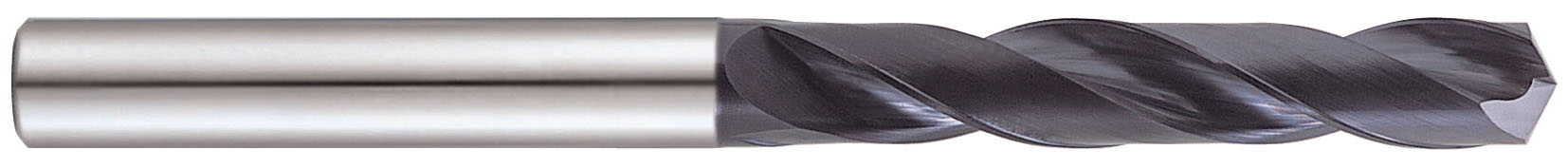

YG-1 0201ATF Short Length Dream Drill, 5/16 in Dia x 3-9/16 in L, Carbide, TiAlN Coated

Short Length Drill Bits
523023 MFG #: 0201ATF
YG-1
53.75000 / ea
YG-1 Short Length Dream Drill, Series: DH414, 5/16 in Dia, 3-9/16 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 1-7/8 in Flute Length, 5/16 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
QTY
  • Features
Excellent positioning
Center drilling is not required
Bushing is not necessary
Reaming is not required
Good chip removal
Powerful drilling
30 deg Helix angle
