YG-1

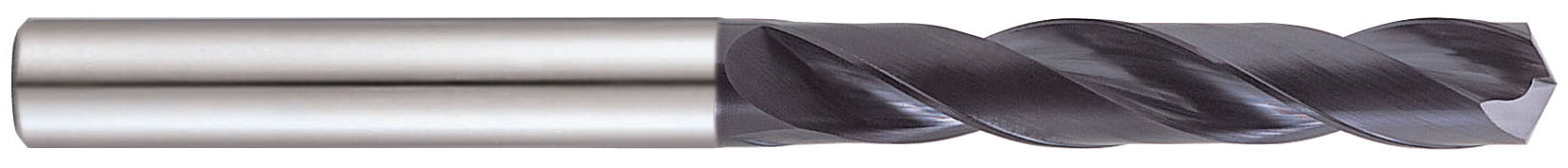

YG-1 0161ATF Short Length Dream Drill, 1/4 in Dia x 3-3/16 in L, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
YG-1
YG-1 0161ATF Short Length Dream Drill, 1/4 in Dia x 3-3/16 in L, Carbide, TiAlN Coated
SKU535702
MFGR #0161ATF
Your Cost: $32.61/ea
List: YG-1 Short Length Dream Drill, Series: DH414, 1/4 in Dia, 3-3/16 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 1-5/8 in Flute Length, 1/4 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
YG-1 Short Length Dream Drill, Series: DH414, 1/4 in Dia, 3-3/16 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 1-5/8 in Flute Length, 1/4 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
Application Steel Catalog Number 0161ATF Country of Origin KR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 1/4 in Drill Diameter Measurement System Imperial Flute Length 1.625 in Flute Type Slow Spiral Gross Weight Per Pack 0.0700 lb Helix Angle 30 ° Number of Flutes 2 Overall Length 3.1875 in Point Angle 140 ° Point Length 0.0455 in Point Type Split Series DH414 Shank Size 0.25 in Shank Tolerance h6 Shank Type Straight Through Coolant No Type General Purpose Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Finish TiALN Material Carbide Steel Excellent positioning Center drilling is not required Bushing is not necessary Reaming is not required Good chip removal Powerful drilling 30 deg Helix angle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | 0161ATF |
| Country of Origin | KR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 1/4 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.625 in |
| Flute Type | Slow Spiral |
| Gross Weight Per Pack | 0.0700 lb |
| Helix Angle | 30 ° |
| Number of Flutes | 2 |
| Overall Length | 3.1875 in |
| Point Angle | 140 ° |
| Point Length | 0.0455 in |
| Point Type | Split |
| Series | DH414 |
| Shank Size | 0.25 in |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | No |
| Type | General Purpose |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic |
| Finish | TiALN |
| Material | Carbide |
| Steel |
| Excellent positioning |
| Center drilling is not required |
| Bushing is not necessary |
| Reaming is not required |
| Good chip removal |
| Powerful drilling |
| 30 deg Helix angle |
