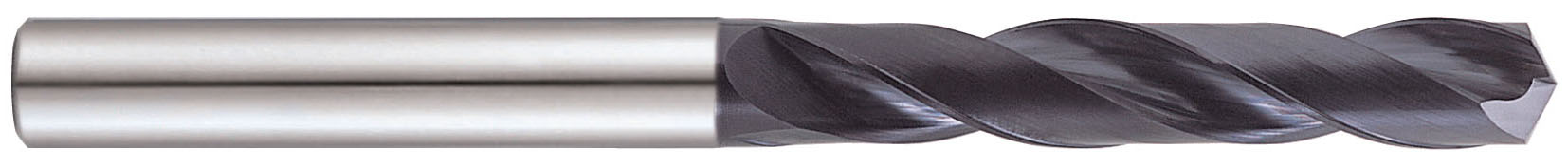

YG-1 0081ATF Short Length Dream Drill, 1/8 in Dia x 1-59/64 in L, Carbide, TiAlN Coated
Custom_Product_Images_Illustration
YG-1 0081ATF Short Length Dream Drill, 1/8 in Dia x 1-59/64 in L, Carbide, TiAlN Coated
SKU683295
MFGR #0081ATF
Your Cost: $14.79/ea
List: YG-1 Short Length Dream Drill, Series: DH414, 1/8 in Dia, 1-59/64 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 45/64 in Flute Length, 1/8 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
YG-1 Short Length Dream Drill, Series: DH414, 1/8 in Dia, 1-59/64 in Overall Length, 3XD Cutting Depth, Slow Spiral Flute, 45/64 in Flute Length, 1/8 in Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, TiAlN Coated, Applicable Materials: Steel, Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metal Heavy Metal, Non-Ferrous Metal Light Metal and Abrasive Plastic Applicable
Application Steel Catalog Number 0081ATF Country of Origin KR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 1/8 in Drill Dia Measurement System Imperial Flute Length 0.7031 in Flute Type Spiral Gross Weight Per Pack 0.0200 lb Helix Angle 30 ° Number of Flutes 2 Overall Length 1.9219 in Point Angle 140 ° Point Length 0.0227 in Point Type Split Series DH414 Shank Size 0.125 in Shank Tolerance h6 Shank Type Straight Through Coolant No Type General Purpose Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Applicable Materials Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals Finish TiAlN Material Carbide Steel Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling Center drilling is not required Bushing is not necessary Reaming is not required Good chip removal Powerful drilling 30 deg Helix angle
content loaded
content loaded
content loaded
content loaded
- Attributes
- Applications
- Features
- Substitute Products
| Application | Steel |
| Catalog Number | 0081ATF |
| Country of Origin | KR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 1/8 in |
| Drill Dia Measurement System | Imperial |
| Flute Length | 0.7031 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0200 lb |
| Helix Angle | 30 ° |
| Number of Flutes | 2 |
| Overall Length | 1.9219 in |
| Point Angle | 140 ° |
| Point Length | 0.0227 in |
| Point Type | Split |
| Series | DH414 |
| Shank Size | 0.125 in |
| Shank Tolerance | h6 |
| Shank Type | Straight |
| Through Coolant | No |
| Type | General Purpose |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Applicable Materials | Steel, Abrasive Plastic, Cast Iron, Cast Steel, Chilled Cast Iron, Malleable Cast Iron and Non-Ferrous Metals |
| Finish | TiAlN |
| Material | Carbide |
| Steel |
| Self-centering - center drilling is not required|Excellent positioning - bushing is not necessary|Special design - reaming is not required|Good chip removal|Powerful drilling |
| Center drilling is not required |
| Bushing is not necessary |
| Reaming is not required |
| Good chip removal |
| Powerful drilling |
| 30 deg Helix angle |
