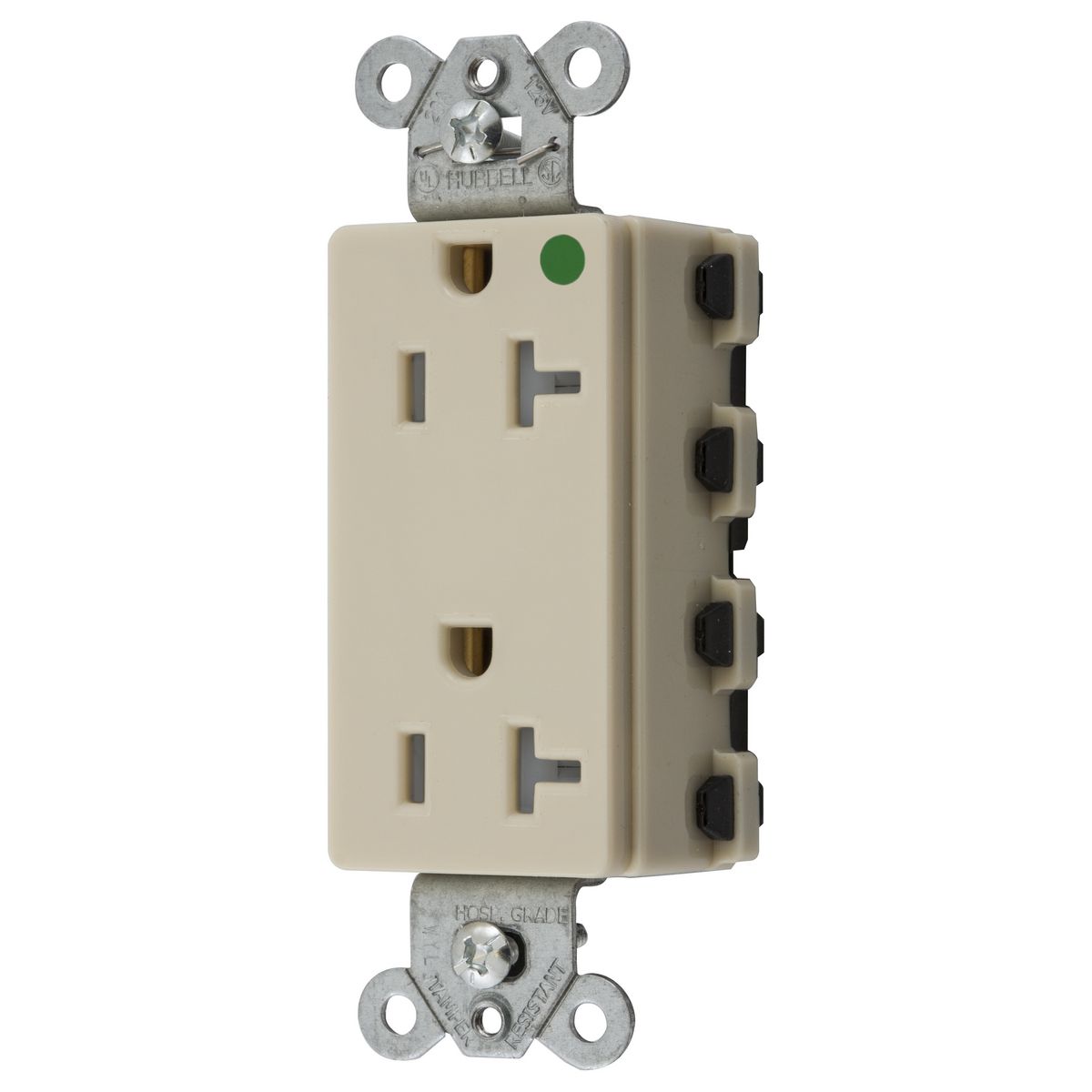

Wiring Device-Kellems SNAPConnect® StyleLine® SNAP2182ITRA Decorator Duplex Extra Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Wiring Device-Kellems SNAPConnect® StyleLine® SNAP2182ITRA Decorator Duplex Extra Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU1078274
MFGR #SNAP2182ITRA
Your Cost: $36.77/ea
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Application Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number SNAP2182ITRA Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.64 in W x 0.86 in D Enclosure IP20 Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Nylon NEMA Rating 5-20R Number Of Poles 2 Phase 1 Replaced Catalog Number SNAP2182ITR Returnable N Size 3.28 in x 1.64 in x 1.1 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42Federal Specification WC596UL 498 Temperature Rating -40 to 75 °C Terminal Type Lead Wire Type Tamper-Resistant UNSPSC 39121406 UPC 11 78358555239 UPC 12 783585552392 Wattage 2,500 W Width 1.80 in Width [Metric] 4.5720 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 V Hospital Grade Quick Connect- SNAPConnect, Tamper-Resistant, USA Product Modular wiring system eliminates screw terminals Speeds installation and trim out Clear polycarbonate terminal housing to inspect contacts Abuse resistant nylon for extra heavy use applications Stainless steel auto ground Audible SNAP, indicates solid connection Fully insulated design Reduces installation time
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP2182ITRA |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.64 in W x 0.86 in D |
| Enclosure | IP20 |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Nylon |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Replaced Catalog Number | SNAP2182ITR |
| Returnable | N |
| Size | 3.28 in x 1.64 in x 1.1 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42Federal Specification WC596UL 498 |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Lead Wire |
| Type | Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78358555239 |
| UPC 12 | 783585552392 |
| Wattage | 2,500 W |
| Width | 1.80 in |
| Width [Metric] | 4.5720 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hospital Grade |
| Quick Connect- SNAPConnect, Tamper-Resistant, USA Product |
| Modular wiring system eliminates screw terminals |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contacts |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground |
| Audible SNAP, indicates solid connection |
| Fully insulated design |
| Reduces installation time |
