Hubbell Wiring Device-Kellems

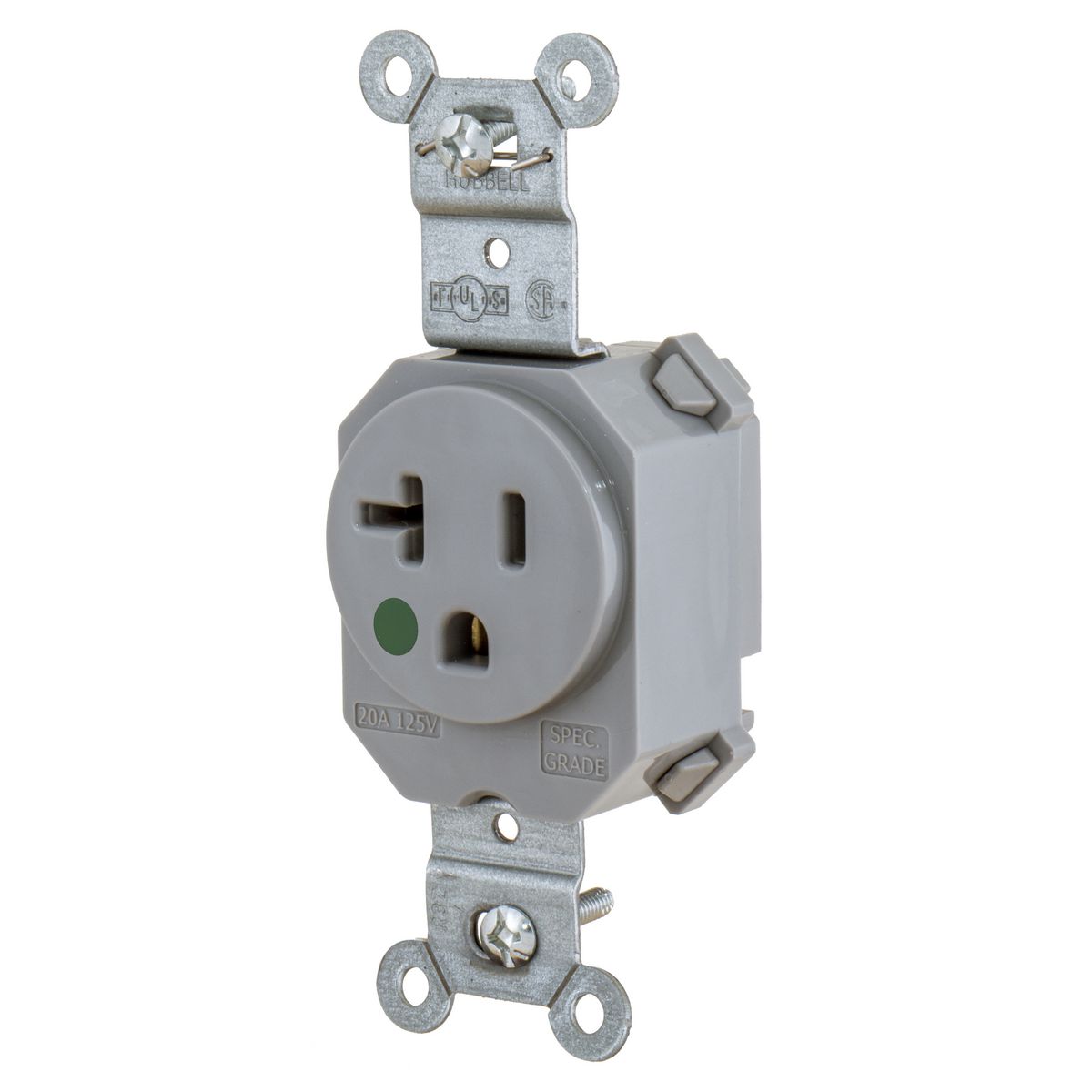

Wiring Device-Kellems SNAPConnect® SNAP8310GY Extra Heavy Duty Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Wiring Device-Kellems SNAPConnect® SNAP8310GY Extra Heavy Duty Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU1008821
MFGR #SNAP8310GY
Your Cost: $19.30/ea
List: SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Application Hospital Grade ARRA Compliant C Buy American Compliant C Catalog Number SNAP8310GY Connection Terminal Screws Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.63 in W x 0.92 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.30 in Length [Metric] 10.9220 cm Material Nylon Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.625 in x 1.1 in Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA, Buy American Act Compliant, CSA C22.2 No. 42, Federal Specification WC596, UL 498 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Lead Wire Type Standard Duplex UNSPSC 39121406 UPC 11 78358555729 UPC 12 783585557298 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Hospital Grade Quick Connect- SNAPConnect Modular wiring system eliminates screw terminals Speeds installation and trim out Clear polycarbonate terminal housing to inspect contacts Abuse resistant nylon for extra heavy use applications Stainless steel auto ground Audible SNAP, indicates solid connection Fully insulated design Reduces installation time
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospital Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SNAP8310GY |
| Connection | Terminal Screws |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.63 in W x 0.92 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.30 in |
| Length [Metric] | 10.9220 cm |
| Material | Nylon |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.625 in x 1.1 in |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA, Buy American Act Compliant, CSA C22.2 No. 42, Federal Specification WC596, UL 498 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Lead Wire |
| Type | Standard Duplex |
| UNSPSC | 39121406 |
| UPC 11 | 78358555729 |
| UPC 12 | 783585557298 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hospital Grade |
| Quick Connect- SNAPConnect |
| Modular wiring system eliminates screw terminals |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contacts |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground |
| Audible SNAP, indicates solid connection |
| Fully insulated design |
| Reduces installation time |
