Hubbell Wiring Device-Kellems

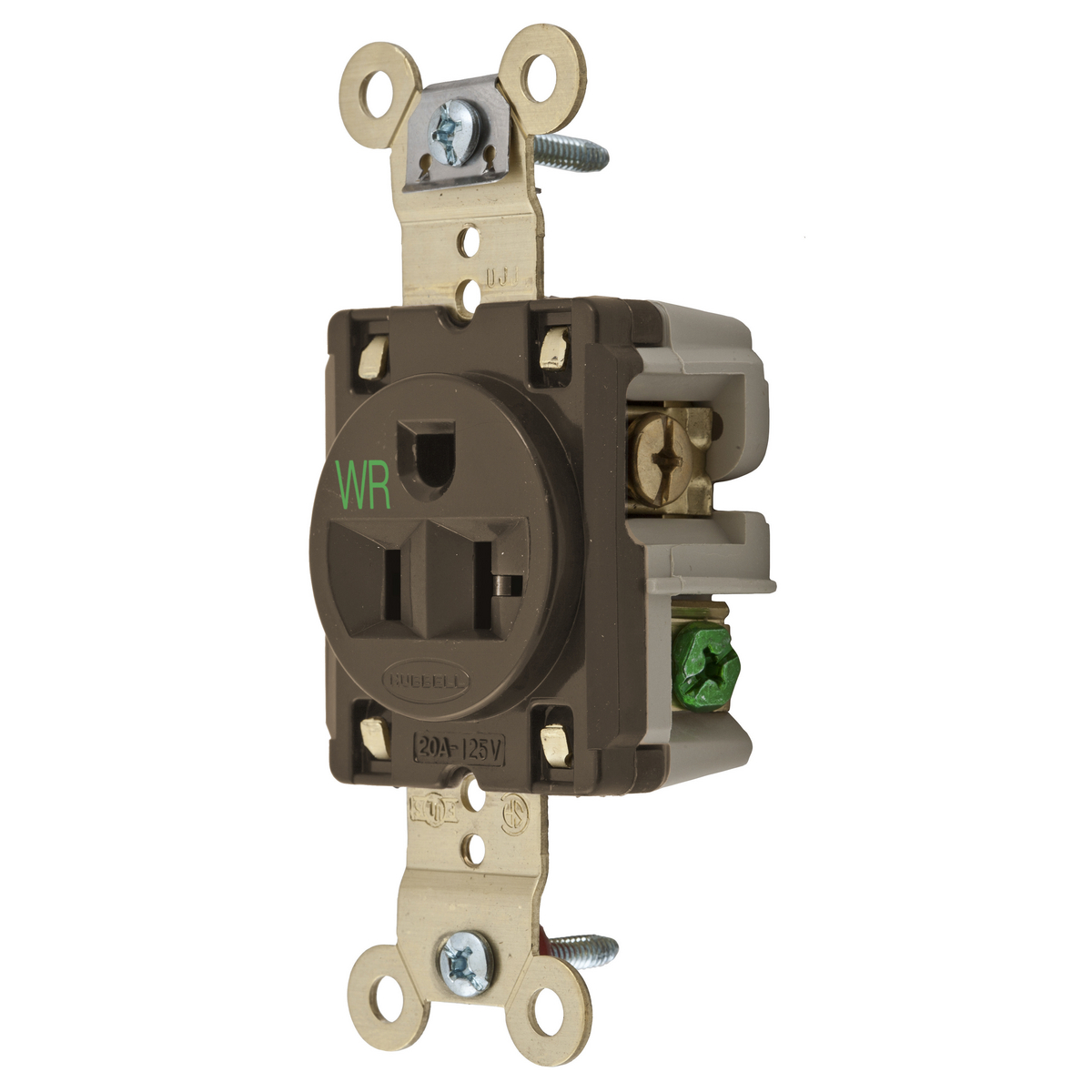

Wiring Device-Kellems HBL5361WR Grounding Extra Heavy Duty Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Wiring Device-Kellems HBL5361WR Grounding Extra Heavy Duty Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU1070823
MFGR #HBL5361WR
Your Cost: $35.54/ea
Wiring Device-Kellems Straight Blade Single Receptacle, Grounding Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Brown, 1.63 in W x 1.19 in D
Wiring Device-Kellems Straight Blade Single Receptacle, Grounding Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Specification Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Brown, 1.63 in W x 1.19 in D
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL5361WR Connection Back and Side Wired Screw Terminals Country of Origin US Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 1.63 in W x 1.19 in D Environmental Conditions Weather Resistant EU RoHS Indicator N Grade Specification Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.70 in Height [Metric] 4.3180 cm Horsepower 1 hp Length 4.20 in Length [Metric] 10.6680 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-20R Number Of Poles 2 Phase 1 Returnable Y Size 3.28 in x 1.63 in x 1.19 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-602;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards CSA 22.2 No. 42 285Federal Specification W-C-602Meets NEMA WD-6 RequirementsUL 498/E2186 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Single Receptacle UNSPSC 39121406 UPC 11 78358532063 UPC 12 783585320632 Wattage 2,500 W Width 1.90 in Width [Metric] 4.8260 cm Wire Size #12 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 VAC Extra Heavy Duty Specification Grade Weather Resistant- Self Grounding Weather resistance complies with national electrical code requirements Back wired ground terminal allows faster, easier installation Finder groove face Traditional face shape NO 8 to 32 brass terminal screw and ground screw Nylon top and reinforced PET base 0.032 in brass power contact 0.05 in brass mounting strap Stainless steel auto ground clip Steel, zinc plated mounting screws Withstand 2000 VAC minimum dielectric voltage Certified for current interrupting at full rated current Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Terminals identified in accordance with UL498 14 to 10 AWG copper stranded or solid conductor only terminal accommodation Ratings are a permanent part of the device product identification UL 94V-2 flammability Weather resistant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5361WR |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | US |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 1.63 in W x 1.19 in D |
| Environmental Conditions | Weather Resistant |
| EU RoHS Indicator | N |
| Grade | Specification |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Horsepower | 1 hp |
| Length | 4.20 in |
| Length [Metric] | 10.6680 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Size | 3.28 in x 1.63 in x 1.19 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-602;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | CSA 22.2 No. 42 285Federal Specification W-C-602Meets NEMA WD-6 RequirementsUL 498/E2186 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 78358532063 |
| UPC 12 | 783585320632 |
| Wattage | 2,500 W |
| Width | 1.90 in |
| Width [Metric] | 4.8260 cm |
| Wire Size | #12 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Extra Heavy Duty Specification Grade |
| Weather Resistant- Self Grounding |
| Weather resistance complies with national electrical code requirements |
| Back wired ground terminal allows faster, easier installation |
| Finder groove face |
| Traditional face shape |
| NO 8 to 32 brass terminal screw and ground screw |
| Nylon top and reinforced PET base |
| 0.032 in brass power contact |
| 0.05 in brass mounting strap |
| Stainless steel auto ground clip |
| Steel, zinc plated mounting screws |
| Withstand 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL498 |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Ratings are a permanent part of the device product identification |
| UL 94V-2 flammability |
| Weather resistant |
