Wiremold® EFSB4 FLAT SCREEN WALL BOX 4-GAN
Square Boxes
779971
MFG #: EFSB4
Wiremold®
365.38000
/ ea

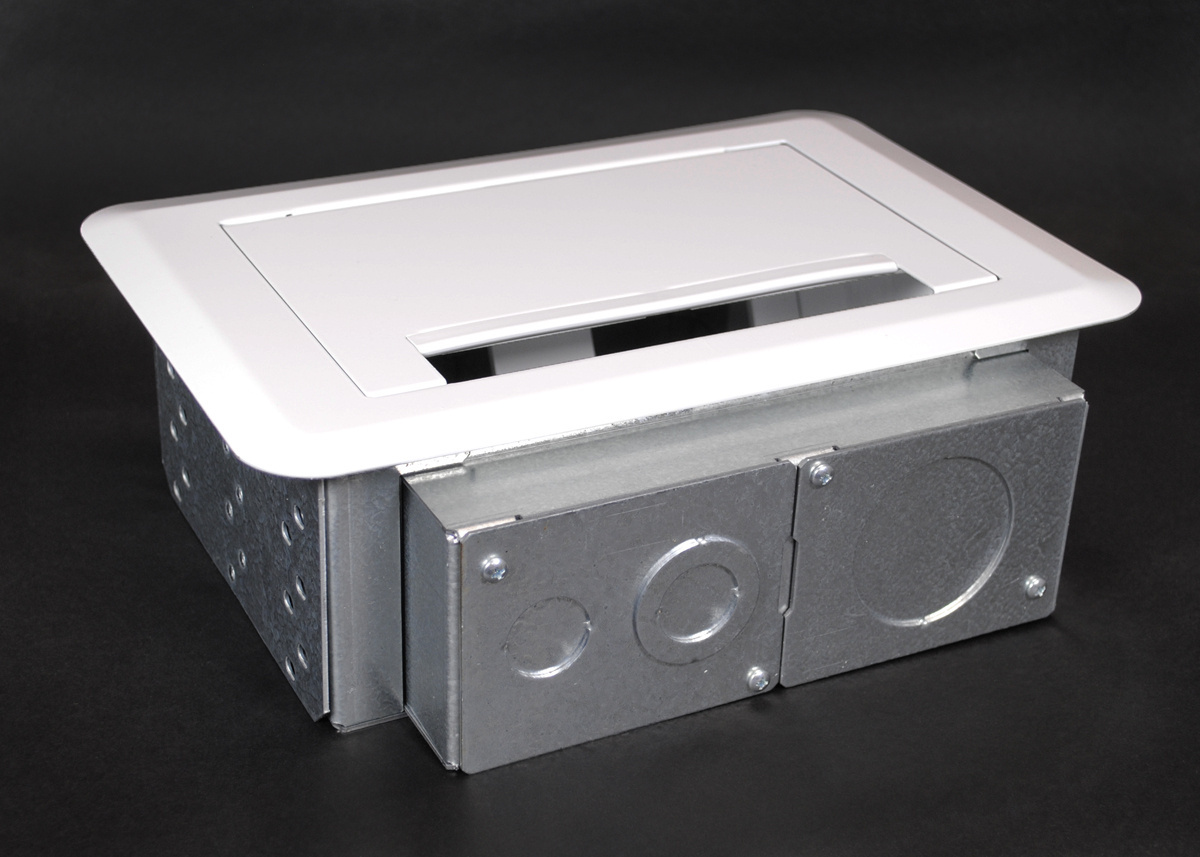

Designed to fit and be concealed behind 42" or larger flat screen displays. Can be installed in both new work and old work applications. Has 4 NEMA size openings for power, communication, or A/V devices.
- Brochure URL - 848AA9A146BB43C4A86D1BAAEA589018.pdf(Brochure URL)
- http://www.wiremold.com(WEB SELLER HOME PAGE URL)
- IDW Material Composition - ROH_Legrand_ROHS_statement.pdf(IDW Material Composition)
- WEB CATALOG URL - IDW_DOCUMENT_ed77e48ed7ee078f175988a524b0509b29c9c56db2d5baf2234d82d67a0fb91b.pdf(WEB CATALOG URL)
- WEB INSTALL INSTR URL - 9F3CE28513CE4EA98A46DEBAD5F22AD1.pdf(WEB INSTALL INSTR URL)
- WEB ROHS COMPLIANCE URL(WEB ROHS COMPLIANCE URL)
- WEB SPEC SHEET URL - 848AA9A146BB43C4A86D1BAAEA589018.pdf(WEB SPEC SHEET URL)
- WEB WARRANTY URL - Wiremold_Warranty.pdf(WEB WARRANTY URL)
- Features
| Stamped steel 4-gang wall box, finished interior, removable modules, tunnels, low profile decorative cover, and accepts standard size wall plates |
| Evolution™ series wall boxes have been design to be able to be installed in both new work and old work installations, saving time and money on the jobsite |
| Removable modules facilitate quick and easy installations by allowing service feeds to be connected outside the box, increasing jobsite productivity and reducing overall project cost |
| The 2-gang Evolution™ series wall box comes complete with a built-in storage module, large enough to hold the smaller receivers and controllers that are typically found behind flat screen monitors |
| Evolution™ series wall boxes are available in both a 2-gang and a 4-gang version, allowing for maximum flexibility to fit the capacity needs of the task at hand |
| Evolution™ series wall boxes come complete with a decorative cover option that is field paintable allowing the product to blend in and match the room decor |
| The decorative trim flange and cover are low profile (less than 1/4 in from the wall surface) allowing the monitors to seat closer to wall |
| The built-in tunnel allows services to be wrapped around, increasing flexibility and configurability, while reducing the number of service feeds that need to be brought to the box |
| Each of the wall boxes are designed to accept standard size 2-3/4 x 4-1/2 in device plates, no proprietary plates means quicker and easier installations |
| Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug in devices |
| All of the Evolution™ series wall boxes can accept service feeds from 3/4 in trade size up to 2 in trade size, these knockout plates are removable and interchangeable, providing the most flexibility and configurability options possible |
| Each module is supplied with one divider that can be removed and replaced when needed, removable dividers allow for maximum configurability |
| Between the removable modules and the tunneling feature, the Evolution™ series wall boxes allows for service feeds to be fed through the boxes, reducing the number of feeds required, saving time and money |
| 3-5/8 in of space behind device plate allows for a maximum amount of space for wiring deeper A/V devices |
| 4-1/2 in of space between devices allows the end user to be able to easily plug into the active devices that are across from one another |
