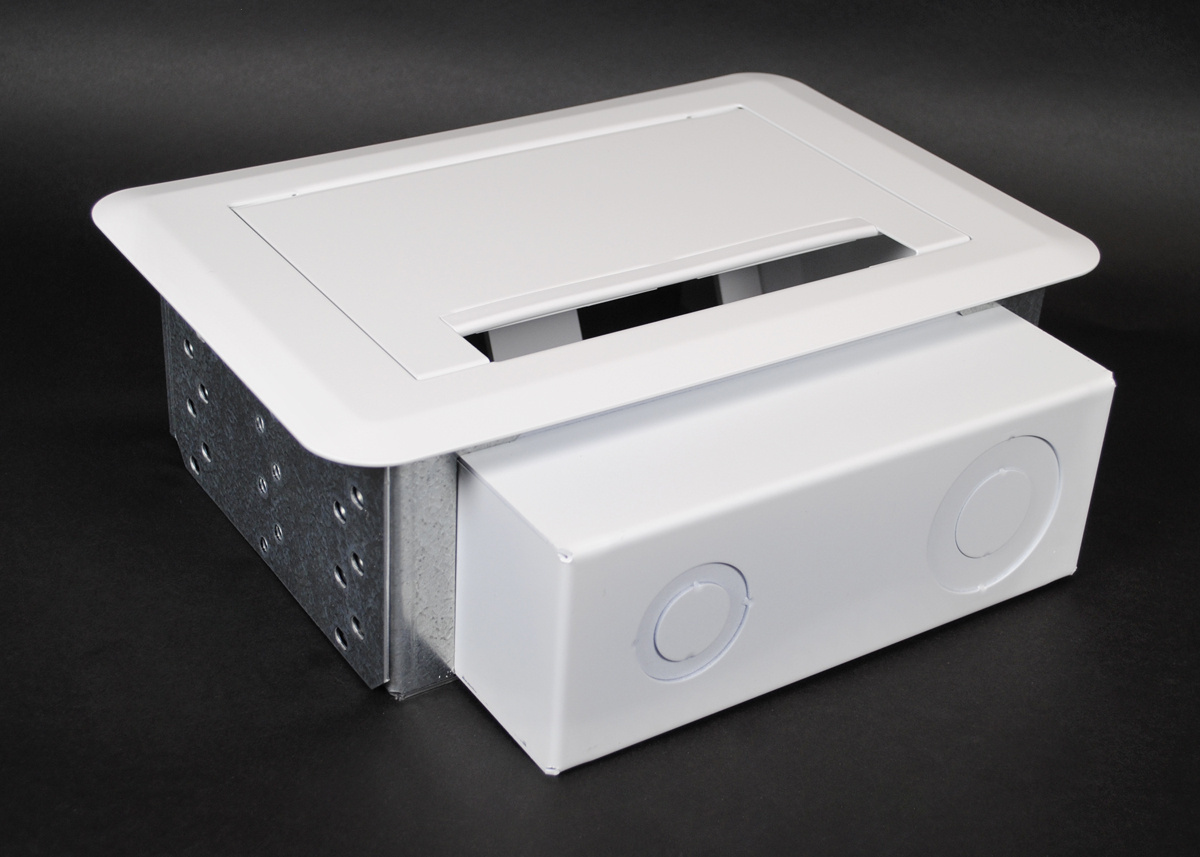

Wiremold® EFSB2 FLAT SCREEN WALL BOX 2-GAN
Square Boxes
869887
MFG #: EFSB2
Wiremold®
264.46000
/ ea
Designed to fit and be concealed behind 42" or larger flat screen displays.-? Can be installed in both new work and old work applications.-? Has 2 NEMA size openings for power, communication, or A/V devices.-? Box is also equipped with a storage module that will accept active A/V equipment up to 6 7/8" x 9 1/8" (175mm x 232mm) (dimensions include wire and cables) in size.
- Catalog URL - IDW_DOCUMENT_ed77e48ed7ee078f175988a524b0509b29c9c56db2d5baf2234d82d67a0fb91b.pdf(Catalog URL)
- http://www.wiremold.com(Seller Home Page URL)
- Install Instructions 1 URL - 11311_4TYAG8I7ZO29ESUF.jpg(Install Instructions 1 URL)
- Install Instructions URL - 9F3CE28513CE4EA98A46DEBAD5F22AD1.pdf(Install Instructions URL)
- Material Composition - ROH_Legrand_ROHS_statement.pdf(Material Composition)
- ROHS Compliance URL(ROHS Compliance URL)
- Warranty URL - 14054_8VF03WQHGNZ7BJ91.pdf(Warranty URL)
- Features
| Stampled steel 2-gang wall box, finished interior, removable modules, accepts standard size wall plates, built in storage module, and a low profile decorative cover |
| Evolution™ series wall boxes have been design to be able to be installed in both new work and old work installations, saving time and money on the jobsite |
| Removable modules facilitate quick and easy installations by allowing service feeds to be connected outside the box, increasing jobsite productivity and reducing overall project cost |
| The 2-gang Evolution™ series wall box comes complete with a built-in storage module, large enough to hold the smaller receivers and controllers that are typically found behind flat screen monitors |
| Evolution™ series wall boxes come complete with a decorative cover option that is field paintable allowing the product to blend in and match the room decor |
| The decorative trim flange and cover are low profile (less than 1/4 in from the wall surface) allowing the monitors to seat closer to wall |
| The built-in tunnel allows services to be wrapped around, increasing flexibility and configurability, while reducing the number of service feeds that need to be brought to the box |
| Each of the wall boxes are designed to accept standard size 2-3/4 x 4-1/2 in device plates, no proprietary plates means quicker and easier installations |
| Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug in devices |
| Between the removable modules and the tunneling feature, the Evolution™ series wall boxes allows for service feeds to be fed through the boxes, reducing the number of feeds required, saving time and money |
| 3-5/8 in of space behind device plate allows for a maximum amount of space for wiring deeper A/V devices |
| 4-1/2 in of space between devices allows the end user to be able to easily plug into the active devices that are across from one another |
