Wiremold®
Wiremold® AMD8ATCAA FLUSH POKE-THRU ASSY/
Custom_Product_Images_Illustration
Wiremold®
Wiremold® AMD8ATCAA FLUSH POKE-THRU ASSY/
SKU577040
MFGR #AMD8ATCAA
Your Cost: $364.32/ea

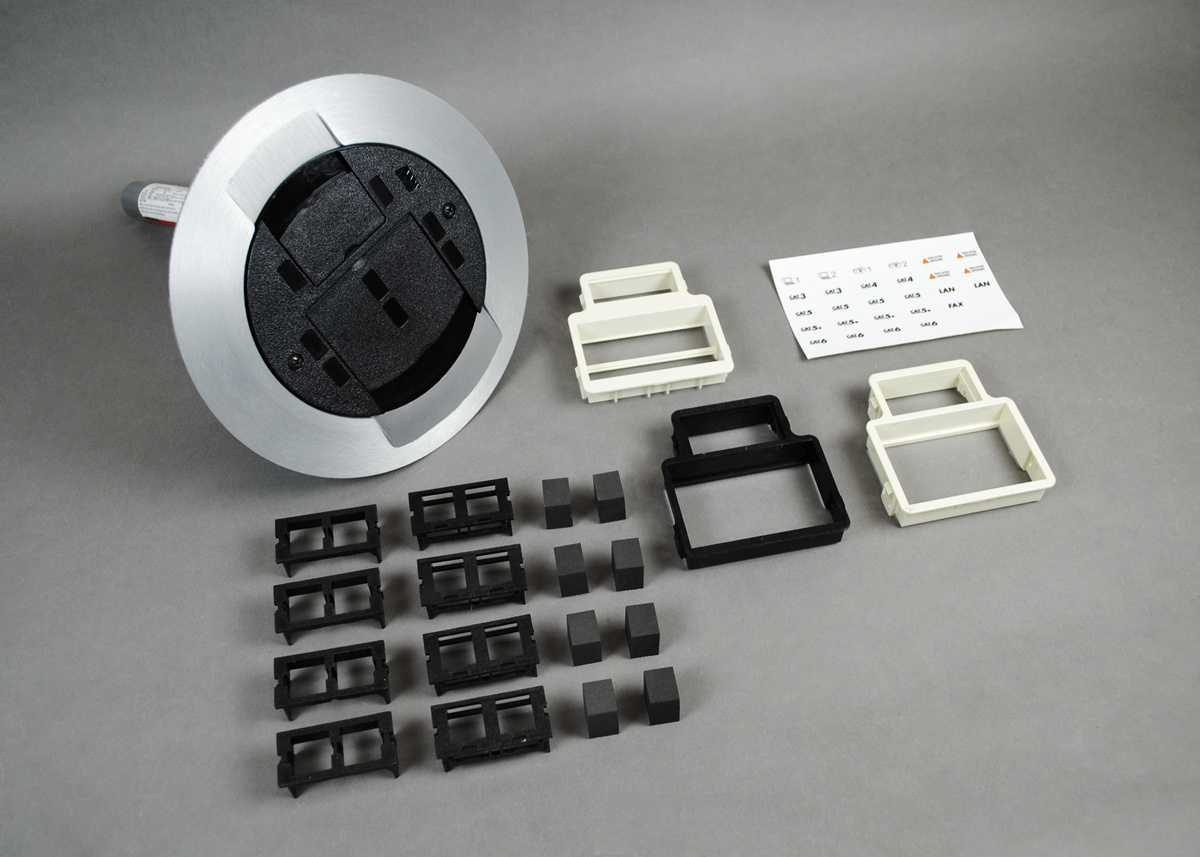

All communication device accepts up to eight UTP, fiber optic, audio, or video connectors. Finish with a brushed aluminum and a aluminum colored device plate. Includes adapters to accept eight (8) Ortronics TracJack modular jacks, four (4) Ortronics Series II modular jacks, or Wiremold Open System adapters. Modular jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. AMD8 Series Poke-Thru Devices require a 4" (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8" minimum. Finish - Anodized Aluminum
All communication device accepts up to eight UTP, fiber optic, audio, or video connectors. Finish with a brushed aluminum and a aluminum colored device plate. Includes adapters to accept eight (8) Ortronics TracJack modular jacks, four (4) Ortronics Series II modular jacks, or Wiremold Open System adapters. Modular jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. AMD8 Series Poke-Thru Devices require a 4" (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8" minimum. Finish - Anodized Aluminum
ARRA Compliant C Buy American Compliant C Cable Entry 1-1/4 in Trade Size Conduit Stem Catalog Number AMD8ATCAA Color Brushed Aluminum Construction Assembled Country of Origin MX Currency USD Depth 9-3/4 in Device Type Fire-Rated EU RoHS Indicator Y Fire Rating 2 Gross Volume Per Pack 1282.42 Gross Volume per Pack Metric 21015.03 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.2700 lb Gross Weight per Pack Metric 1.94 Gross Weight UOM Metric kg Height 16.75 in Height [Metric] 42.5450 cm Knockout Size 3/4 in, 1-1/4 in Length 8.75 in Length [Metric] 22.2250 cm Material Composition http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf Material Composition Declaration http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf Series AMD8 Standard ROHS, NAFTA, CULUS, cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21 & 300.22(C) & 314 of NEC. Standards ARRA CompliantBuy American Act CompliantTAA CompliantcULus Listed File No. E2961 Guide QCITcULus Listed File No. R8209 Guide CEYYArticle No. 300-22 NECUL514AUL 514C Suitable For Use With Carpet, Tile, Wood, Covered Floor Type Flush Single Service UNSPSC 39121328 UPC 11 78656401577 UPC 12 78656401577 Width 8.75 in Width [Metric] 22.2250 cm Stock Status NONSTOCK Brand Wiremold® Manufacturer Legrand Cover Size 7 in Hole Size 4 in Material Aluminum/Brass Number of Gangs 1 TopGuard Protection. Integral design component that prevents water, dirt and debris from entering power and communication compartments. All communication device accepts up to eight UTP, fiber optic, audio or video connectors TopGuard™ protection - an integral design component that prevents water, dirt and debris from entering power and communication compartments, whenever you see the TopGuard™ protection icon applied to any Wiremold® product Provides flexibility with a single poke-thru unit - 20 A duplex receptacle in the AV3 and the RC7 Series can be wired as standard or isolated ground receptacle, two 20A duplex power receptacles in the RC4 Series are wired with a 6-wire system with individual neutral and ground wires and can be wired for standard or isolated ground, RC9 quad 15A receptacle can also be wired as standard or isolated ground receptacle Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer Suitable for use in air handling plenums - in accordance with section 300-22(C) of the NEC Fire rated for up to 2 hr rated floors - maintains the fire classification of the floor Not designed to work with bare concrete or terrazzo
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Entry | 1-1/4 in Trade Size Conduit Stem |
| Catalog Number | AMD8ATCAA |
| Color | Brushed Aluminum |
| Construction | Assembled |
| Country of Origin | MX |
| Currency | USD |
| Depth | 9-3/4 in |
| Device Type | Fire-Rated |
| EU RoHS Indicator | Y |
| Fire Rating | 2 |
| Gross Volume Per Pack | 1282.42 |
| Gross Volume per Pack Metric | 21015.03 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.2700 lb |
| Gross Weight per Pack Metric | 1.94 |
| Gross Weight UOM Metric | kg |
| Height | 16.75 in |
| Height [Metric] | 42.5450 cm |
| Knockout Size | 3/4 in, 1-1/4 in |
| Length | 8.75 in |
| Length [Metric] | 22.2250 cm |
| Material Composition | http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf |
| Material Composition Declaration | http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf |
| Series | AMD8 |
| Standard | ROHS, NAFTA, CULUS, cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. cULus Listed Nonmetallic Outlet Boxes & Fittings Classified for Fire Resistance: File R8209 Guide CEYY. Meets Article 300.21 & 300.22(C) & 314 of NEC. |
| Standards | ARRA CompliantBuy American Act CompliantTAA CompliantcULus Listed File No. E2961 Guide QCITcULus Listed File No. R8209 Guide CEYYArticle No. 300-22 NECUL514AUL 514C |
| Suitable For Use With | Carpet, Tile, Wood, Covered Floor |
| Type | Flush Single Service |
| UNSPSC | 39121328 |
| UPC 11 | 78656401577 |
| UPC 12 | 78656401577 |
| Width | 8.75 in |
| Width [Metric] | 22.2250 cm |
| Stock Status | NONSTOCK |
| Brand | Wiremold® |
| Manufacturer | Legrand |
| Cover Size | 7 in |
| Hole Size | 4 in |
| Material | Aluminum/Brass |
| Number of Gangs | 1 |
| TopGuard Protection. Integral design component that prevents water, dirt and debris from entering power and communication compartments. |
| All communication device accepts up to eight UTP, fiber optic, audio or video connectors |
| TopGuard™ protection - an integral design component that prevents water, dirt and debris from entering power and communication compartments, whenever you see the TopGuard™ protection icon applied to any Wiremold® product |
| Provides flexibility with a single poke-thru unit - 20 A duplex receptacle in the AV3 and the RC7 Series can be wired as standard or isolated ground receptacle, two 20A duplex power receptacles in the RC4 Series are wired with a 6-wire system with individual neutral and ground wires and can be wired for standard or isolated ground, RC9 quad 15A receptacle can also be wired as standard or isolated ground receptacle |
| Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer |
| Suitable for use in air handling plenums - in accordance with section 300-22(C) of the NEC |
| Fire rated for up to 2 hr rated floors - maintains the fire classification of the floor |
| Not designed to work with bare concrete or terrazzo |
