Wiegmann® SC363612NK SC PULL BOX,CS,NK,3
SKU949447
MFGR #SC363612NK
Your Cost: $1,520.36/ea

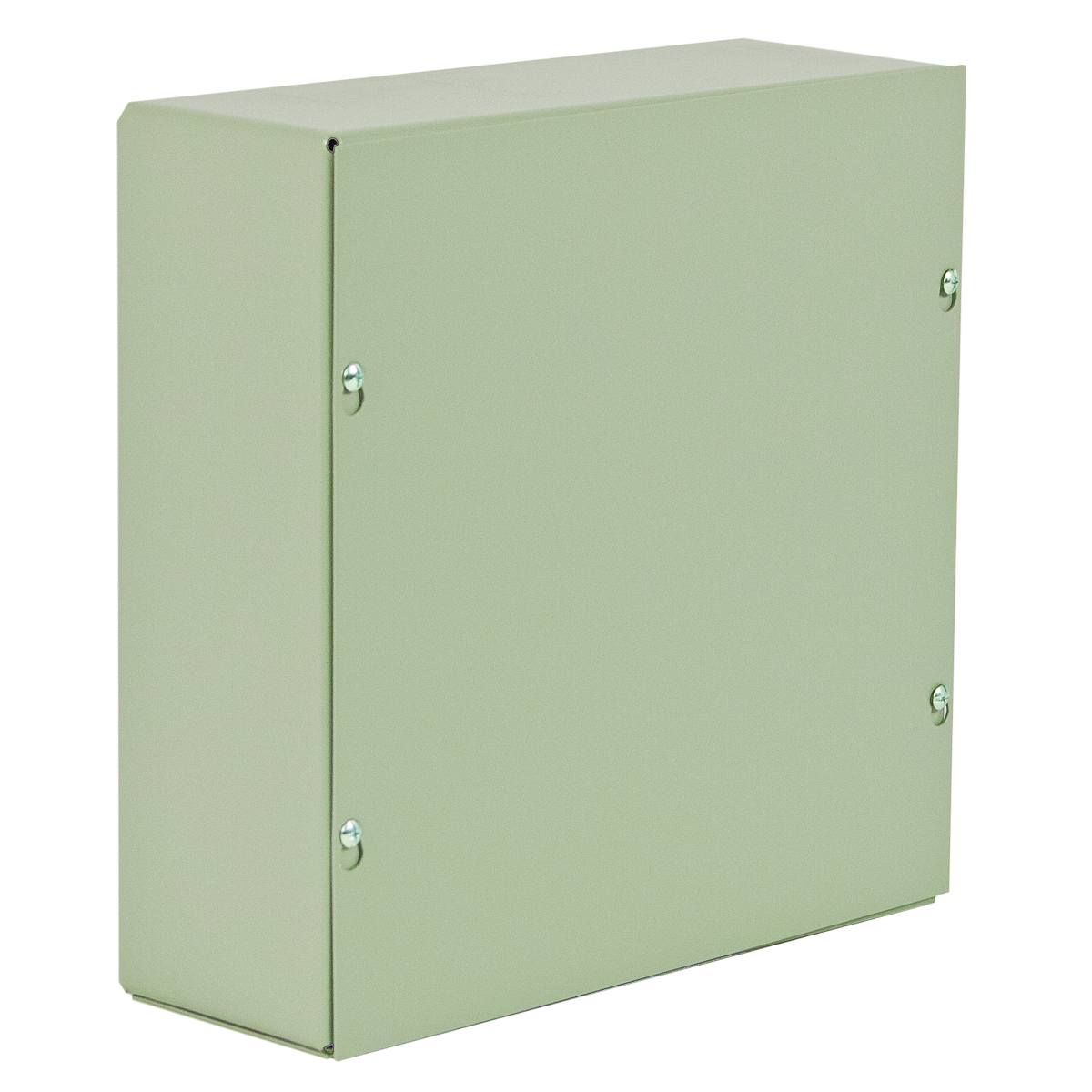

N1, Screw Cover Pull Box - No Ko's 36-36-12
N1, Screw Cover Pull Box - No Ko's 36-36-12
Application Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. ARRA Compliant C Buy American Compliant C Cable Entry Size 1/2 to 1-1/4 in Capacity 15552 in³ Catalog Number SC363612NK Color Gray Construction Tack Welded Country of Origin US Cubic Capacity 15552 cu. in. in³ Currency USD EU RoHS Indicator N Finish Textured Gross Volume Per Pack 15552.00 Gross Volume per Pack Metric 254850.62 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 128.0000 lb Gross Weight per Pack Metric 58.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 91.4400 cm Length [Metric] 30.4800 cm Mounting Mounting Holes Mounting Type Wall Returnable Y Series SC Series Size 36" H x 36" W x 12" D Standard UL, CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E23553CSA File No. LL66078OSHA ApprovedPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Type Tack Welded UNSPSC 39121324 UPC 11 78672531556 UPC 12 786725315567 Width [Metric] 91.4400 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Cover Type Screw Depth 12 in Height 36.00 in Length 12.00 in Material Carbon Steel NEMA Rating NEMA 1 Width 36.00 in Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. Fabricated from 12 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Fabricated from 12 ga steel Flat, removable covers fastened with plated steel screws Cover design permits easy removal without extracting cover screws Mounting holes on the back of the enclosure Flush covers must be ordered separately for flush mount applications Without knockout
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Entry Size | 1/2 to 1-1/4 in |
| Capacity | 15552 in³ |
| Catalog Number | SC363612NK |
| Color | Gray |
| Construction | Tack Welded |
| Country of Origin | US |
| Cubic Capacity | 15552 cu. in. in³ |
| Currency | USD |
| EU RoHS Indicator | N |
| Finish | Textured |
| Gross Volume Per Pack | 15552.00 |
| Gross Volume per Pack Metric | 254850.62 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 128.0000 lb |
| Gross Weight per Pack Metric | 58.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 91.4400 cm |
| Length [Metric] | 30.4800 cm |
| Mounting | Mounting Holes |
| Mounting Type | Wall |
| Returnable | Y |
| Series | SC Series |
| Size | 36" H x 36" W x 12" D |
| Standard | UL, CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E23553CSA File No. LL66078OSHA ApprovedPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Type | Tack Welded |
| UNSPSC | 39121324 |
| UPC 11 | 78672531556 |
| UPC 12 | 786725315567 |
| Width [Metric] | 91.4400 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Cover Type | Screw |
| Depth | 12 in |
| Height | 36.00 in |
| Length | 12.00 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 1 |
| Width | 36.00 in |
| Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Fabricated from 12 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. |
| Fabricated from 12 ga steel |
| Flat, removable covers fastened with plated steel screws |
| Cover design permits easy removal without extracting cover screws |
| Mounting holes on the back of the enclosure |
| Flush covers must be ordered separately for flush mount applications |
| Without knockout |
