Wiegmann®

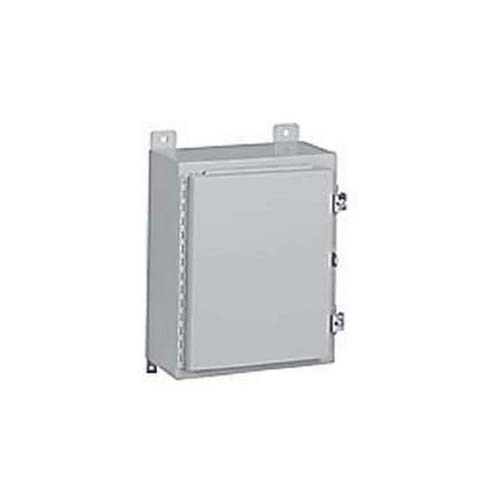

Wiegmann® N12161608 Enclosure, 16 in W x 8 in D, Type 12 and 13, Steel
Custom_Product_Images_Illustration
Wiegmann®
Wiegmann® N12161608 Enclosure, 16 in W x 8 in D, Type 12 and 13, Steel
SKU946826
MFGR #N12161608
Your Cost: $992.49/ea
Wiegmann® Enclosure, Series: N12, 16 in Width, 8 in D, Type 12 and 13, Single Door Cover, 13 in H x 13 in W Panel, Wall Mount, Steel, Polyester Powder Coated, Gray
Wiegmann® Enclosure, Series: N12, 16 in Width, 8 in D, Type 12 and 13, Single Door Cover, 13 in H x 13 in W Panel, Wall Mount, Steel, Polyester Powder Coated, Gray
ARRA Compliant C Buy American Compliant C Capacity 2048 in³ Catalog Number N12161608 Color Gray Construction Continuously Welded Seams Country of Origin US Cover Type 16" H x 16" W x 8" D Cubic Capacity 2048 cu. in. in³ Currency USD Electrical Rating External mounting feet EU RoHS Indicator Y Finish Smooth Gross Volume Per Pack 2048.00 Gross Volume per Pack Metric 33560.58 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 31.0000 lb Gross Weight per Pack Metric 14.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 40.6400 cm Length [Metric] 20.3200 cm Lock Padlock Mounting External mounting feet Mounting Type Wall Panel Size 13 in H x 13 in W Returnable Y Series N12 Size 16" H x 16" W x 8" D Standard UL, CSA Type 1-Door UNSPSC 39121324 UPC 11 78672534297 UPC 12 786725342976 Width [Metric] 40.6400 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Depth 8 in Height 16.00 in Length 8.00 in Material Carbon Steel NEMA Rating NEMA 12/13 Width 16.00 in Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. Bodies and doors fabricated from 14 gauge steel. Continuously Plasma welded seams. Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants. Quick and easy to operate door clamps are provided. Doors removable by pulling heavy gauge continuous hinged pin. Hasp and staple for padlocking. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Collar studs provided for mounting optional sub panels. External mounting feet for mounting enclosure. Grounding provisions provided. Optional panels must be ordered separately. Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access, designed for indoor use in protecting components from dust, dirt, oil and water Continuously plasma welded seams Door and body stiffeners are provided in larger enclosures for extra rigidity Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants Quick and easy to operate door clamps are provided Doors removable by pulling heavy gauge continuous hinge pin Hasp and staple for padlocking Print pocket is provided Doors are sealed with poured in place polyurethane gasket External mounting feet for mounting enclosure Grounding provisions provided ANSI-61 gray polyester powder inside and out finish Body and doors fabricated from 14 ga steel 16 in H 2-door clamps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Capacity | 2048 in³ |
| Catalog Number | N12161608 |
| Color | Gray |
| Construction | Continuously Welded Seams |
| Country of Origin | US |
| Cover Type | 16" H x 16" W x 8" D |
| Cubic Capacity | 2048 cu. in. in³ |
| Currency | USD |
| Electrical Rating | External mounting feet |
| EU RoHS Indicator | Y |
| Finish | Smooth |
| Gross Volume Per Pack | 2048.00 |
| Gross Volume per Pack Metric | 33560.58 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 31.0000 lb |
| Gross Weight per Pack Metric | 14.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 40.6400 cm |
| Length [Metric] | 20.3200 cm |
| Lock | Padlock |
| Mounting | External mounting feet |
| Mounting Type | Wall |
| Panel Size | 13 in H x 13 in W |
| Returnable | Y |
| Series | N12 |
| Size | 16" H x 16" W x 8" D |
| Standard | UL, CSA |
| Type | 1-Door |
| UNSPSC | 39121324 |
| UPC 11 | 78672534297 |
| UPC 12 | 786725342976 |
| Width [Metric] | 40.6400 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Depth | 8 in |
| Height | 16.00 in |
| Length | 8.00 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 12/13 |
| Width | 16.00 in |
| Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Bodies and doors fabricated from 14 gauge steel. Continuously Plasma welded seams. Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants. Quick and easy to operate door clamps are provided. Doors removable by pulling heavy gauge continuous hinged pin. Hasp and staple for padlocking. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Collar studs provided for mounting optional sub panels. External mounting feet for mounting enclosure. Grounding provisions provided. Optional panels must be ordered separately. |
| Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access, designed for indoor use in protecting components from dust, dirt, oil and water |
| Continuously plasma welded seams |
| Door and body stiffeners are provided in larger enclosures for extra rigidity |
| Rolled lip on three sides of door and all sides of enclosure opening is provided to exclude liquids and contaminants |
| Quick and easy to operate door clamps are provided |
| Doors removable by pulling heavy gauge continuous hinge pin |
| Hasp and staple for padlocking |
| Print pocket is provided |
| Doors are sealed with poured in place polyurethane gasket |
| External mounting feet for mounting enclosure |
| Grounding provisions provided |
| ANSI-61 gray polyester powder inside and out finish |
| Body and doors fabricated from 14 ga steel |
| 16 in H |
| 2-door clamps |
