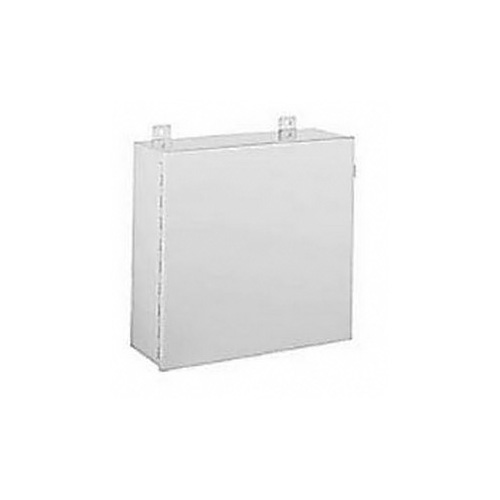

Wiegmann® B121206CH JIC,CS,CONT HINGE,12X
SKU913282
MFGR #B121206CH
Your Cost: $351.38/ea
JIC,CS,CONT HINGE,12X12X6
JIC,CS,CONT HINGE,12X12X6
Application Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. ARRA Compliant C Buy American Compliant C Capacity 864 in³ Catalog Number B121206CH Color Gray Construction Continuously Welded Seams Country of Origin MX Cover Type Continuous Hinged Cubic Capacity 864 cu. in. in³ Currency USD EU RoHS Indicator Y Finish Textured Gross Volume Per Pack 864.00 Gross Volume per Pack Metric 14158.37 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 15.0000 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height [Metric] 30.4800 cm Length [Metric] 15.2400 cm Mounting External mounting plates Mounting Type Wall Panel Size 10.88 in H x 10.88 in W Returnable Y Series B-CH Size 12" H x 12" W x 6" D Standard UL, CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA LL66078JIC EL-1-71NEMA/EEMAC Type 12/13UL File No. E23553/E64791UL 50PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Type Carbon steel NEMA 12 JIC continuous hinged wall-mount enclosure UNSPSC 39121324 UPC 11 78672533153 UPC 12 786725331536 Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Wiegmann® Manufacturer Wiegmann Depth 6 in Height 12.00 in Length 6.00 in Material Carbon Steel NEMA Rating NEMA 12/13 Width 12.00 in Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely. External screw clamps are quick and easy to operate. Standard continuous hinge. Grounding provisions provided. Intended for use as electrical junction boxes, terminal wiring boxes and instrument housings, hinged door provides convenient access, designed to provide protection from dust, dirt, oil and water Body 14 ga and doors fabricated from 16 ga steel Continuously welded seams ground smooth, less knockouts or holes Lids are sealed with closed cell oil resistant neoprene gasket External mounting plates, top and bottom of enclosure Weldnuts are provided on models 6 x 4 in and larger to secure optional back panel External screw clamps are quick and easy to operate Grounding provisions provided ANSI-61 gray polyester powder inside and out finish 12-3/4 x 10 in mounting 13-1/2 x 13 in overall 13-1/2 x 13 in overa
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Capacity | 864 in³ |
| Catalog Number | B121206CH |
| Color | Gray |
| Construction | Continuously Welded Seams |
| Country of Origin | MX |
| Cover Type | Continuous Hinged |
| Cubic Capacity | 864 cu. in. in³ |
| Currency | USD |
| EU RoHS Indicator | Y |
| Finish | Textured |
| Gross Volume Per Pack | 864.00 |
| Gross Volume per Pack Metric | 14158.37 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 15.0000 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height [Metric] | 30.4800 cm |
| Length [Metric] | 15.2400 cm |
| Mounting | External mounting plates |
| Mounting Type | Wall |
| Panel Size | 10.88 in H x 10.88 in W |
| Returnable | Y |
| Series | B-CH |
| Size | 12" H x 12" W x 6" D |
| Standard | UL, CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA LL66078JIC EL-1-71NEMA/EEMAC Type 12/13UL File No. E23553/E64791UL 50PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Type | Carbon steel NEMA 12 JIC continuous hinged wall-mount enclosure |
| UNSPSC | 39121324 |
| UPC 11 | 78672533153 |
| UPC 12 | 786725331536 |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Wiegmann® |
| Manufacturer | Wiegmann |
| Depth | 6 in |
| Height | 12.00 in |
| Length | 6.00 in |
| Material | Carbon Steel |
| NEMA Rating | NEMA 12/13 |
| Width | 12.00 in |
| Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided for mounting optional panels securely. External screw clamps are quick and easy to operate. Standard continuous hinge. Grounding provisions provided. |
| Intended for use as electrical junction boxes, terminal wiring boxes and instrument housings, hinged door provides convenient access, designed to provide protection from dust, dirt, oil and water |
| Body 14 ga and doors fabricated from 16 ga steel |
| Continuously welded seams ground smooth, less knockouts or holes |
| Lids are sealed with closed cell oil resistant neoprene gasket |
| External mounting plates, top and bottom of enclosure |
| Weldnuts are provided on models 6 x 4 in and larger to secure optional back panel |
| External screw clamps are quick and easy to operate |
| Grounding provisions provided |
| ANSI-61 gray polyester powder inside and out finish |
| 12-3/4 x 10 in mounting |
| 13-1/2 x 13 in overall |
| 13-1/2 x 13 in overa |
