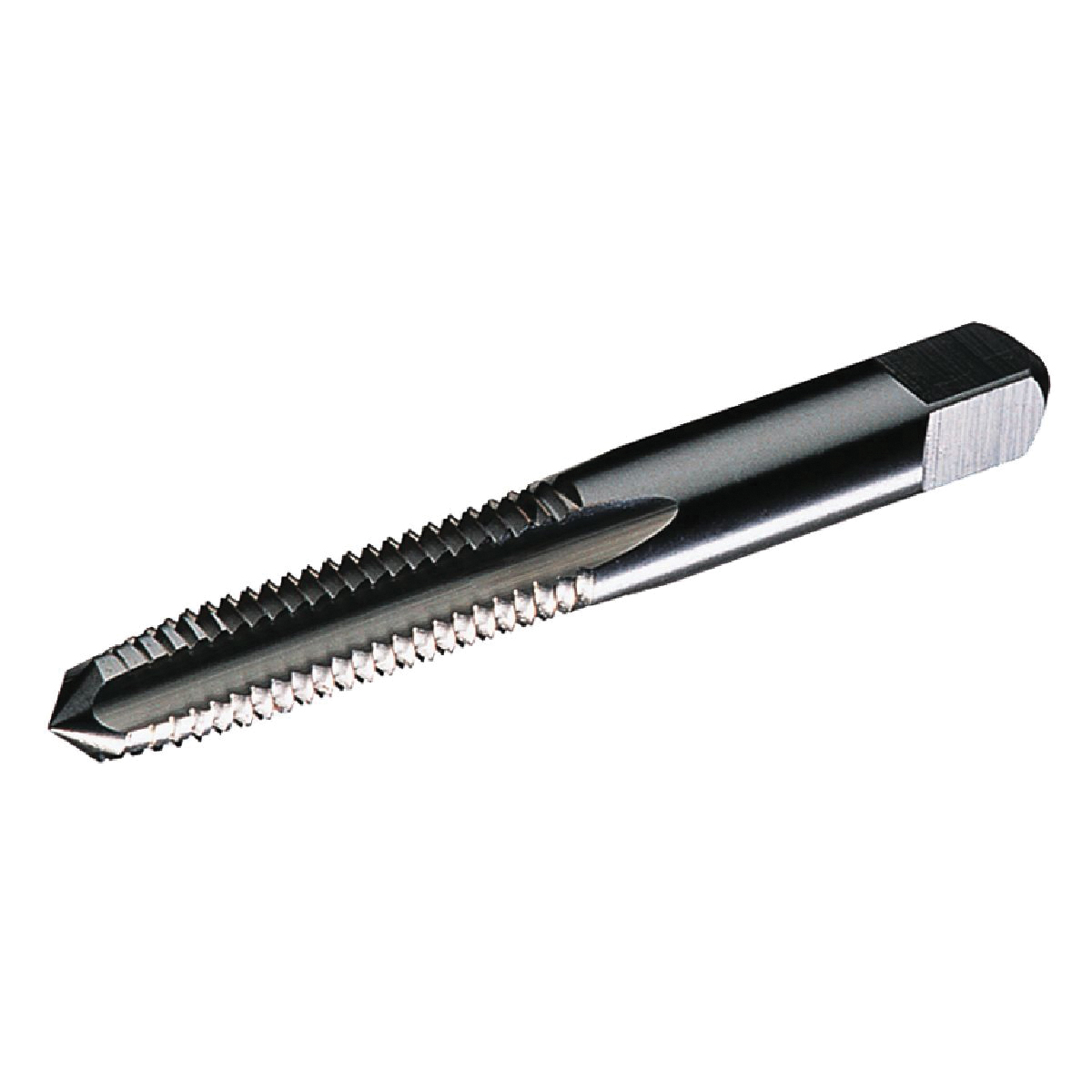

Widia™ 14233 GTD™ 5303/2303 General Purpose Straight Flute Tap, Imperial, 7/16-14, UNC Thread, 4 Flutes, 2B/3B, Bottoming
Custom_Product_Images_Illustration
Widia™ 14233 GTD™ 5303/2303 General Purpose Straight Flute Tap, Imperial, 7/16-14, UNC Thread, 4 Flutes, 2B/3B, Bottoming
SKU484978
MFGR #14233
Your Cost: $16.48/ea
List: WIDIA™ GTD™ Straight Flute Tap, General Purpose, Series: 5303/2303, Measurement System Imperial, 7/16-14, UNC, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B/3B, Right Hand Cutting, 1.44 in Thread Length, 3.16 in Overall Length, 0.323 in Shank Dia
WIDIA™ GTD™ Straight Flute Tap, General Purpose, Series: 5303/2303, Measurement System Imperial, 7/16-14, UNC, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B/3B, Right Hand Cutting, 1.44 in Thread Length, 3.16 in Overall Length, 0.323 in Shank Dia
Alternate Catalog Number 14233 Catalog Number 14233 Class of Fit 2B/3B Country of Origin US Finish|Coating Uncoated Gross Weight Per Pack 0.0700 lb Measurement System Imperial Overall Length 3.16 in Series 5303/2303 Shank Diameter 0.323 in Standards ANSI 302 Thread Length 1.44 in Thread Standard UNC Through Coolant Yes Type General Purpose UPC 11 66235514233 UPC 12 66235514233 Stock Status NONSTOCK Brand WIDIA™ Manufacturer Greenfield Industries Chamfer Type Bottoming Cutting Direction Right Hand Material HSS Material Application Cast Iron and Non-Ferrous Materials Number of Flutes 4 Thread Limit H5 Thread Size 7/16-14 Most popular style of tap Manufactured from select high speed steel for increased wear life Can be used by hand or for tapping under power Versatile taps for use in general machine tapping or CNC tapping applications Hand taps store chips in their flutes next to the chamfered teeth during the threading operation For threading close to the bottom of blind holes, the least efficient standard chamfer Uncoated taps are recommended for non-ferrous materials and cast iron Coolant flood 1P-2P chamfer H5 thread limit
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 14233 |
| Catalog Number | 14233 |
| Class of Fit | 2B/3B |
| Country of Origin | US |
| Finish|Coating | Uncoated |
| Gross Weight Per Pack | 0.0700 lb |
| Measurement System | Imperial |
| Overall Length | 3.16 in |
| Series | 5303/2303 |
| Shank Diameter | 0.323 in |
| Standards | ANSI 302 |
| Thread Length | 1.44 in |
| Thread Standard | UNC |
| Through Coolant | Yes |
| Type | General Purpose |
| UPC 11 | 66235514233 |
| UPC 12 | 66235514233 |
| Stock Status | NONSTOCK |
| Brand | WIDIA™ |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Bottoming |
| Cutting Direction | Right Hand |
| Material | HSS |
| Material Application | Cast Iron and Non-Ferrous Materials |
| Number of Flutes | 4 |
| Thread Limit | H5 |
| Thread Size | 7/16-14 |
| Most popular style of tap |
| Manufactured from select high speed steel for increased wear life |
| Can be used by hand or for tapping under power |
| Versatile taps for use in general machine tapping or CNC tapping applications |
| Hand taps store chips in their flutes next to the chamfered teeth during the threading operation |
| For threading close to the bottom of blind holes, the least efficient standard chamfer |
| Uncoated taps are recommended for non-ferrous materials and cast iron |
| Coolant flood |
| 1P-2P chamfer |
| H5 thread limit |
