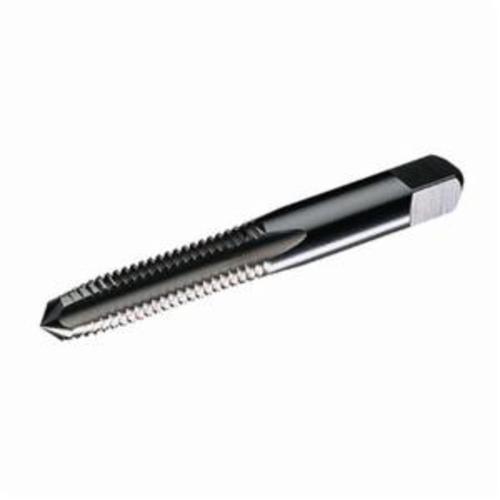

Widia™ 14124 GTD™ 5303/2303 General Purpose Straight Flute Tap, Imperial, 5/16-24, UNF Thread, 4 Flutes, 2B/3B, Bottoming
Custom_Product_Images_Illustration
Widia™ 14124 GTD™ 5303/2303 General Purpose Straight Flute Tap, Imperial, 5/16-24, UNF Thread, 4 Flutes, 2B/3B, Bottoming
SKU194357
MFGR #2038474
Your Cost: $7.61/ea
List: WIDIA™ GTD™ Straight Flute Tap, General Purpose, Series: 5303/2303, Measurement System Imperial, 5/16-24, UNF, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B/3B, Right Hand Cutting, 1.13 in Thread Length, 2.72 in Overall Length, 0.318 in Shank Dia
WIDIA™ GTD™ Straight Flute Tap, General Purpose, Series: 5303/2303, Measurement System Imperial, 5/16-24, UNF, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B/3B, Right Hand Cutting, 1.13 in Thread Length, 2.72 in Overall Length, 0.318 in Shank Dia
Alternate Catalog Number 14124 Catalog Number 2038474 Class of Fit 2B Country of Origin US Finish|Coating Bright Gross Weight Per Pack 1 lb Measurement System Imperial Overall Length 2.72 in Series HTGP Shank Diameter 0.318 in Standards USCTI 302A Thread Length 0.69 in Thread Standard Ground/UNF Type General Purpose Standard UPC 11 66235514124 UPC 12 66235514124 Stock Status NONSTOCK Brand WIDIA™ Manufacturer Greenfield Industries Chamfer Type Bottoming Cutting Direction Right Hand Material HSS Material Application Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials Number of Flutes 4 Thread Limit H3 Thread Size 5/16-24 Most popular style of tap Manufactured from select high speed steel for increased wear life Can be used by hand or for tapping under power Versatile taps for use in general machine tapping or CNC tapping applications Hand taps store chips in their flutes next to the chamfered teeth during the threading operation For threading close to the bottom of blind holes, the least efficient standard chamfer Uncoated taps are recommended for non-ferrous materials and cast iron Coolant flood 1P-2P chamfer H3 thread limit
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 14124 |
| Catalog Number | 2038474 |
| Class of Fit | 2B |
| Country of Origin | US |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 1 lb |
| Measurement System | Imperial |
| Overall Length | 2.72 in |
| Series | HTGP |
| Shank Diameter | 0.318 in |
| Standards | USCTI 302A |
| Thread Length | 0.69 in |
| Thread Standard | Ground/UNF |
| Type | General Purpose Standard |
| UPC 11 | 66235514124 |
| UPC 12 | 66235514124 |
| Stock Status | NONSTOCK |
| Brand | WIDIA™ |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Bottoming |
| Cutting Direction | Right Hand |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials |
| Number of Flutes | 4 |
| Thread Limit | H3 |
| Thread Size | 5/16-24 |
| Most popular style of tap |
| Manufactured from select high speed steel for increased wear life |
| Can be used by hand or for tapping under power |
| Versatile taps for use in general machine tapping or CNC tapping applications |
| Hand taps store chips in their flutes next to the chamfered teeth during the threading operation |
| For threading close to the bottom of blind holes, the least efficient standard chamfer |
| Uncoated taps are recommended for non-ferrous materials and cast iron |
| Coolant flood |
| 1P-2P chamfer |
| H3 thread limit |
