WIDIA™

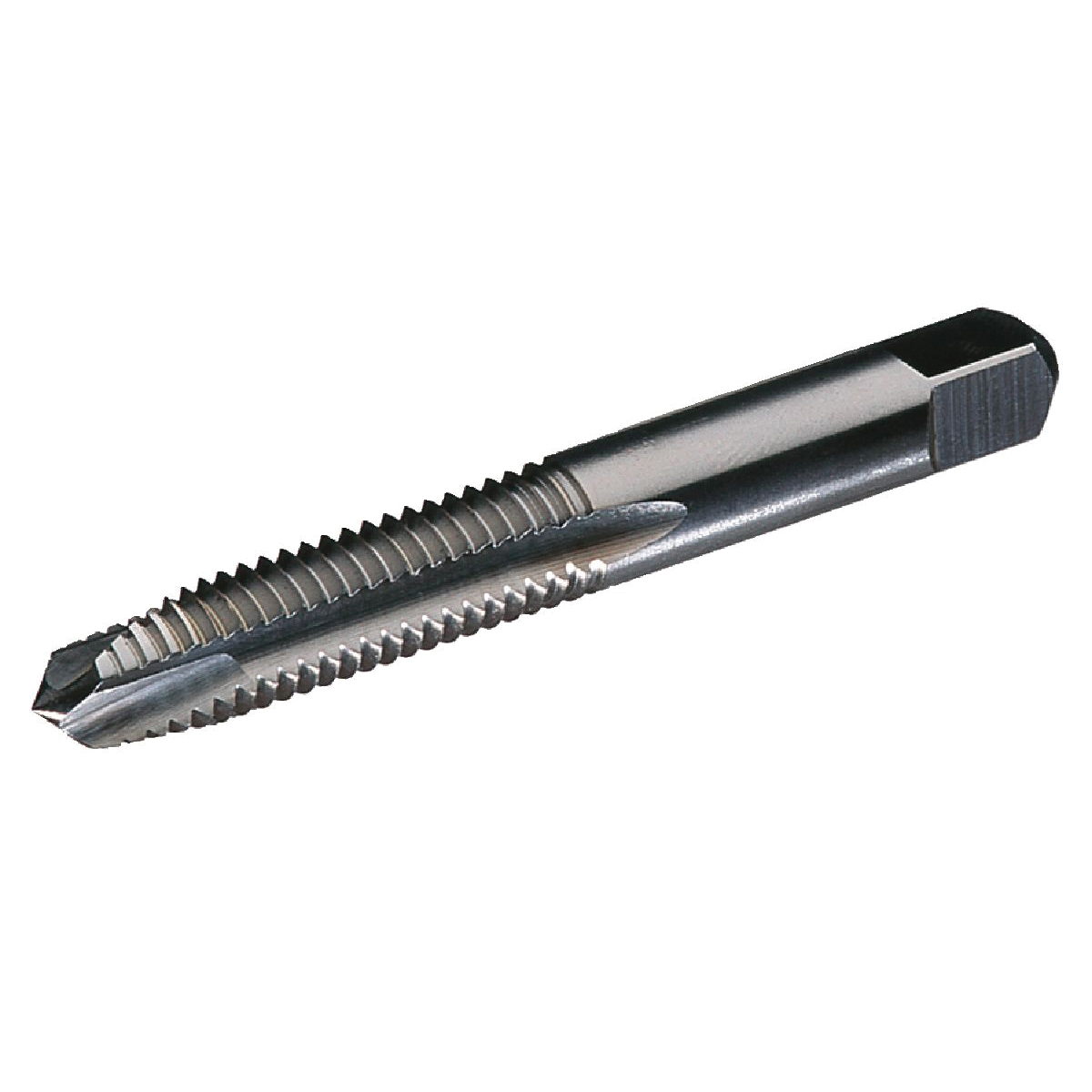

Widia™ 13176 GTD™ GUN™ 5301S Spiral Point Tap, Imperial, 3/8-16, UNC Thread, 3 Flutes, Right Hand Cutting Direction, Plug
Custom_Product_Images_Illustration
WIDIA™
Widia™ 13176 GTD™ GUN™ 5301S Spiral Point Tap, Imperial, 3/8-16, UNC Thread, 3 Flutes, Right Hand Cutting Direction, Plug
SKU58155
MFGR #2750268
Your Cost: $9.17/ea
List: WIDIA™ GTD™ Spiral Point Tap, Series: GUN™ 5301S, Measurement System Imperial, 3/8-16, Thread Standard: UNC, Plug Chamfer, 3 Flutes, HSS, SH50 Steam Oxide, Right Hand Cutting, 1-1/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Dia
WIDIA™ GTD™ Spiral Point Tap, Series: GUN™ 5301S, Measurement System Imperial, 3/8-16, Thread Standard: UNC, Plug Chamfer, 3 Flutes, HSS, SH50 Steam Oxide, Right Hand Cutting, 1-1/4 in Thread Length, 2.94 in Overall Length, 0.381 in Shank Dia
Alternate Catalog Number 13176 Catalog Number 2750268 Class of Fit 3B Country of Origin US Finish|Coating SH50 Steam Oxide Gross Weight Per Pack 0.0700 lb Measurement System Imperial Overall Length 2.94 in Series GUN™ 5301S Shank Diameter 0.381 in Standards ANSI Specified, USCTI 302A Thread Length 1-1/4 in Thread Standard UNC UPC 11 66235513176 UPC 12 66235513176 Stock Status NONSTOCK Brand WIDIA™ Manufacturer Greenfield Industries Chamfer Type Plug Cutting Direction Right Hand Material HSS Material Application Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel Number of Flutes 3 Thread Limit H3 Thread Size 3/8-16 Shoots chips ahead of the cutting action to reduce overloading and clogging in flutes, protecting the workpiece Extended life in ferrous materials Ideal for tapping a wide array of ferrous materials Applicable on steel, stainless steel, gray cast iron, ductile cast iron, wrought aluminum, cast aluminum, copper, copper alloys, iron based, cobalt based, nickel based, titanium alloys Coolant flood 3.5P-5P chamfer H3 thread limit
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 13176 |
| Catalog Number | 2750268 |
| Class of Fit | 3B |
| Country of Origin | US |
| Finish|Coating | SH50 Steam Oxide |
| Gross Weight Per Pack | 0.0700 lb |
| Measurement System | Imperial |
| Overall Length | 2.94 in |
| Series | GUN™ 5301S |
| Shank Diameter | 0.381 in |
| Standards | ANSI Specified, USCTI 302A |
| Thread Length | 1-1/4 in |
| Thread Standard | UNC |
| UPC 11 | 66235513176 |
| UPC 12 | 66235513176 |
| Stock Status | NONSTOCK |
| Brand | WIDIA™ |
| Manufacturer | Greenfield Industries |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | HSS |
| Material Application | Unalloy/Cast Steel, Free Cutting Steel, Low Alloy/Cast Steel, High Alloy/Cast Steel, Tool Steel and Cast/Stainless Steel |
| Number of Flutes | 3 |
| Thread Limit | H3 |
| Thread Size | 3/8-16 |
| Shoots chips ahead of the cutting action to reduce overloading and clogging in flutes, protecting the workpiece |
| Extended life in ferrous materials |
| Ideal for tapping a wide array of ferrous materials |
| Applicable on steel, stainless steel, gray cast iron, ductile cast iron, wrought aluminum, cast aluminum, copper, copper alloys, iron based, cobalt based, nickel based, titanium alloys |
| Coolant flood |
| 3.5P-5P chamfer |
| H3 thread limit |
