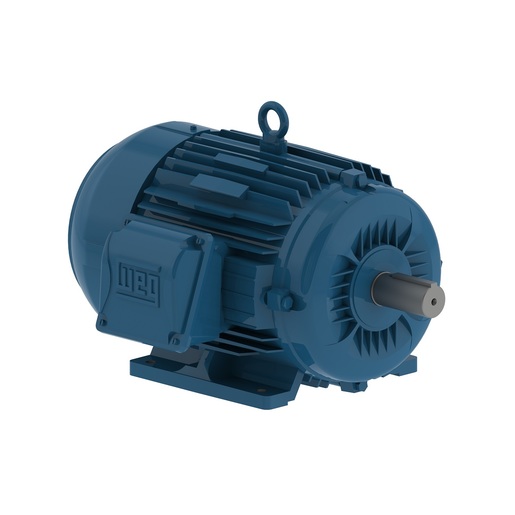

Weg Electric 00518ET3E184T-W22 5HP 1800 TEFC 184T PREMIUM EFFICIENCY 208-230/460
SKU577116
MFGR #00518ET3E184T-W22
Your Cost: $617.60/ea
List: WEG is a 3 phase electric motor with diameter of 1-1/8 in, 5 hp and its speed rating is 1755 RPM
WEG is a 3 phase electric motor with diameter of 1-1/8 in, 5 hp and its speed rating is 1755 RPM
Application Industrial Application Base Rigid Bearing Ball Brand WEG Catalog Number 00518ET3E184T-W22 Enclosure IC411 - TEFC Frame 182/4T Frequency Rating 60 Hz Full Load Current 14.3 - 12.9/6.45 A Horsepower 5 hp Insulation Class F Mounting Foot Mount Phase 3 Returnable Y Rotation CW/CCW Service Factor 1 Shaft Size 1-1/8 in Speed Rating 1755 rpm Standard NEMA MG-1 Stock Status NONSTOCK Torque Rating 14.8 ft-lb Type Electric Motor UPC 11 91327095540 UPC 12 91327095540 Voltage Rating 208-230 V;460 V Industrial Application Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Name Plate as standard. With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Nameplate as standard. - Dual rated for 60 Hz and 50 Hz @ 190-220/380-415 V - Optimized ventilation system for cooler operation - Robust feet design for the toughest applications - Frames 182/4T and larger have two eyebolts for easy mounting in any position - Oversized diagonally split aluminum terminal box that exceeds IP55 requirements (Ideal for easy installation and tough environments) - Terminal box is rotatable in 90 degrees increments for easy installation - AEGIS® ring inside (optional) to extend bearing life when used with VFDs - IP55 ingress protection is standard - Suitable for VFD operation per NEMA MG1 part 31.4.4.2 - Color coded leads for easy installation - Motor paint resistance exceeds 500 hours of salt spray test
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial Application |
| Base | Rigid |
| Bearing | Ball |
| Brand | WEG |
| Catalog Number | 00518ET3E184T-W22 |
| Enclosure | IC411 - TEFC |
| Frame | 182/4T |
| Frequency Rating | 60 Hz |
| Full Load Current | 14.3 - 12.9/6.45 A |
| Horsepower | 5 hp |
| Insulation Class | F |
| Mounting | Foot Mount |
| Phase | 3 |
| Returnable | Y |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Size | 1-1/8 in |
| Speed Rating | 1755 rpm |
| Standard | NEMA MG-1 |
| Stock Status | NONSTOCK |
| Torque Rating | 14.8 ft-lb |
| Type | Electric Motor |
| UPC 11 | 91327095540 |
| UPC 12 | 91327095540 |
| Voltage Rating | 208-230 V;460 V |
| Industrial Application |
| Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Name Plate as standard. |
| With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Complies with NEMA Premium efficiency level and carry CSA Certified for Division 2 on the Nameplate as standard. |
| - Dual rated for 60 Hz and 50 Hz @ 190-220/380-415 V |
| - Optimized ventilation system for cooler operation |
| - Robust feet design for the toughest applications |
| - Frames 182/4T and larger have two eyebolts for easy mounting in any position |
| - Oversized diagonally split aluminum terminal box that exceeds IP55 requirements (Ideal for easy installation and tough environments) |
| - Terminal box is rotatable in 90 degrees increments for easy installation |
| - AEGIS® ring inside (optional) to extend bearing life when used with VFDs |
| - IP55 ingress protection is standard |
| - Suitable for VFD operation per NEMA MG1 part 31.4.4.2 |
| - Color coded leads for easy installation |
| - Motor paint resistance exceeds 500 hours of salt spray test |
