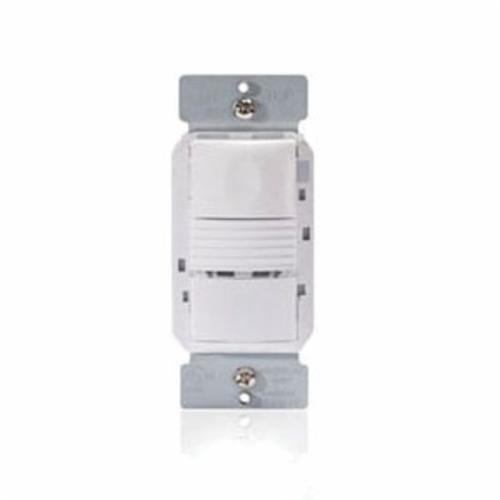

WattStopper® PW-100-W Single Relay Wall Mount Occupancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 180 deg
Custom_Product_Images_Illustration
WattStopper® PW-100-W Single Relay Wall Mount Occupancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 180 deg
SKU377742
MFGR #PW-100-W
Your Cost: $103.91/ea
PIR technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space. Relying on a clear line-of-sight view, passive infrared sensors make 100 percent coverage cut off possible. These sensors utilize a unique fresnel lens which divides the coverage area into zone, enhancing detection of small movement.
PIR technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space. Relying on a clear line-of-sight view, passive infrared sensors make 100 percent coverage cut off possible. These sensors utilize a unique fresnel lens which divides the coverage area into zone, enhancing detection of small movement.
Catalog Number PW-100-W Color White Connection Type Flying Lead Control Output Automatic On-Off, Manual On-Off Country of Origin CN Dimensions 2.73 in L x 1.76 in W x 1.83 in H Gross Weight Per Pack 0.4000 lb Lamp Type Fluorescent/Incandescent/LED Material Plastic Power Rating 0 to 1200 W, 1/6 hp Series PW Series Standards RoHS CompliantcUL ListedUL 244AUL 508 Temperature Rating 35 °C Time Delay 5 to 30 mins Type 1-Relay UNSPSC 39122236 UPC 11 75418291930 UPC 12 75418291930 Stock Status NONSTOCK Brand WattStopper® Manufacturer Legrand Coverage 525 ft² Mounting Type Surface Sensor Type Passive Infrared Viewing Angle 180 ° Voltage Rating 120/230/277 VAC Passive Infrared Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 s at walk through mode, 5 s for 10 min with dip switch setting at test mode High or low (DIP switch) PIR adjustment 0 - 800 W tungsten or ballast, 1/6 hp motor load Limit for each relay at 120 VAC and 0 - 1200 W ballast load Limit for each relay at 277 VAC Detection signature processing eliminates false triggers and provides immunity to RFI and EMI Zero crossing for long relay life Vandal-resistant lens combines precise coverage with durability Choice of manual on or auto-ON operation Selectable walk through mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s Test mode allows quick and easy adjustments Selectable audible alert for impending shutoff In automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentations Four occupancy logic options give users the ability to customize control to meet application needs Optional light level sensing with simple setup Service mode allows sensor to operate as a service switch in the unlikely event of a failure Sensor coverage tested to NEMA guide Publication WD 7-2000 Compatible with decorator wall plates Magnetic or electronic ballast load type One relay and one on/OFF button Wall switch sensor turns lights off and on based on occupancy
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | PW-100-W |
| Color | White |
| Connection Type | Flying Lead |
| Control Output | Automatic On-Off, Manual On-Off |
| Country of Origin | CN |
| Dimensions | 2.73 in L x 1.76 in W x 1.83 in H |
| Gross Weight Per Pack | 0.4000 lb |
| Lamp Type | Fluorescent/Incandescent/LED |
| Material | Plastic |
| Power Rating | 0 to 1200 W, 1/6 hp |
| Series | PW Series |
| Standards | RoHS CompliantcUL ListedUL 244AUL 508 |
| Temperature Rating | 35 °C |
| Time Delay | 5 to 30 mins |
| Type | 1-Relay |
| UNSPSC | 39122236 |
| UPC 11 | 75418291930 |
| UPC 12 | 75418291930 |
| Stock Status | NONSTOCK |
| Brand | WattStopper® |
| Manufacturer | Legrand |
| Coverage | 525 ft² |
| Mounting Type | Surface |
| Sensor Type | Passive Infrared |
| Viewing Angle | 180 ° |
| Voltage Rating | 120/230/277 VAC |
| Passive Infrared |
| Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 s at walk through mode, 5 s for 10 min with dip switch setting at test mode |
| High or low (DIP switch) PIR adjustment |
| 0 - 800 W tungsten or ballast, 1/6 hp motor load Limit for each relay at 120 VAC and 0 - 1200 W ballast load Limit for each relay at 277 VAC |
| Detection signature processing eliminates false triggers and provides immunity to RFI and EMI |
| Zero crossing for long relay life |
| Vandal-resistant lens combines precise coverage with durability |
| Choice of manual on or auto-ON operation |
| Selectable walk through mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s |
| Test mode allows quick and easy adjustments |
| Selectable audible alert for impending shutoff |
| In automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentations |
| Four occupancy logic options give users the ability to customize control to meet application needs |
| Optional light level sensing with simple setup |
| Service mode allows sensor to operate as a service switch in the unlikely event of a failure |
| Sensor coverage tested to NEMA guide Publication WD 7-2000 |
| Compatible with decorator wall plates |
| Magnetic or electronic ballast load type |
| One relay and one on/OFF button |
| Wall switch sensor turns lights off and on based on occupancy |
