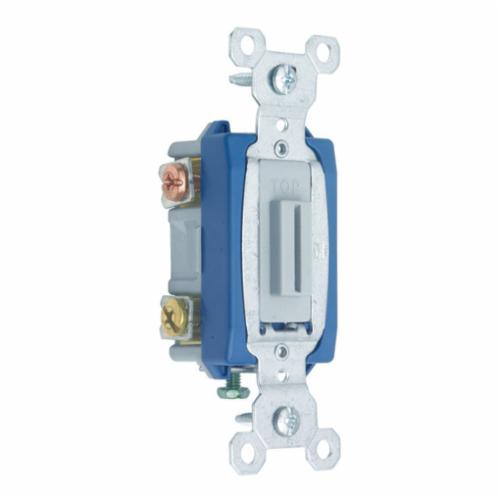

WattStopper® 1081-KGRY Heavy Duty Low Voltage Toggle Switch, 24 VAC/VDC, 3 A, SPDT
Custom_Product_Images_Illustration
WattStopper® 1081-KGRY Heavy Duty Low Voltage Toggle Switch, 24 VAC/VDC, 3 A, SPDT
SKU525631
MFGR #1081-KGRY
$/ea
WattStopper® Toggle Switch, Heavy Duty Low Voltage, 24 VAC/VDC, 3 A, SPDT, Toggle, Wall, Screw/Side Wire Terminal, 100000 Operating Cycles, Thermoplastic, Gray, 3.281 in H x 1.312 in W
WattStopper® Toggle Switch, Heavy Duty Low Voltage, 24 VAC/VDC, 3 A, SPDT, Toggle, Wall, Screw/Side Wire Terminal, 100000 Operating Cycles, Thermoplastic, Gray, 3.281 in H x 1.312 in W
Actuator Toggle Catalog Number 1081-KGRY Color Gray Country of Origin US Dimensions 3.281 in H x 1.312 in W Gross Weight Per Pack 0.2100 lb Material Thermoplastic Mounting Wall Operating Cycles 100000 Cycles Standards NEMA WD-1, WD-6, RoHS Compliant, UL Listed Terminal Type Screw Type Heavy Duty UNSPSC 39122211 UPC 11 78500720042 UPC 12 78500720042 Stock Status NONSTOCK Brand WattStopper® Manufacturer Legrand Amperage Rating 3 A Contact Configuration SPDT Voltage Rating 24 VAC//VDC Available in despard & heavy duty toggle version, side wire, heavy duty toggle recommended Available in Despard interchangeable and heavy-duty toggle versions Side wired screw terminals Heavy-duty toggles recommended where low-voltage switches must match conventional switches Low voltage Key-locking toggle Side wire connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Toggle |
| Catalog Number | 1081-KGRY |
| Color | Gray |
| Country of Origin | US |
| Dimensions | 3.281 in H x 1.312 in W |
| Gross Weight Per Pack | 0.2100 lb |
| Material | Thermoplastic |
| Mounting | Wall |
| Operating Cycles | 100000 Cycles |
| Standards | NEMA WD-1, WD-6, RoHS Compliant, UL Listed |
| Terminal Type | Screw |
| Type | Heavy Duty |
| UNSPSC | 39122211 |
| UPC 11 | 78500720042 |
| UPC 12 | 78500720042 |
| Stock Status | NONSTOCK |
| Brand | WattStopper® |
| Manufacturer | Legrand |
| Amperage Rating | 3 A |
| Contact Configuration | SPDT |
| Voltage Rating | 24 VAC//VDC |
| Available in despard & heavy duty toggle version, side wire, heavy duty toggle recommended |
| Available in Despard interchangeable and heavy-duty toggle versions |
| Side wired screw terminals |
| Heavy-duty toggles recommended where low-voltage switches must match conventional switches |
| Low voltage |
| Key-locking toggle |
| Side wire connection |
