Hubbell Wiring Device-Kellems

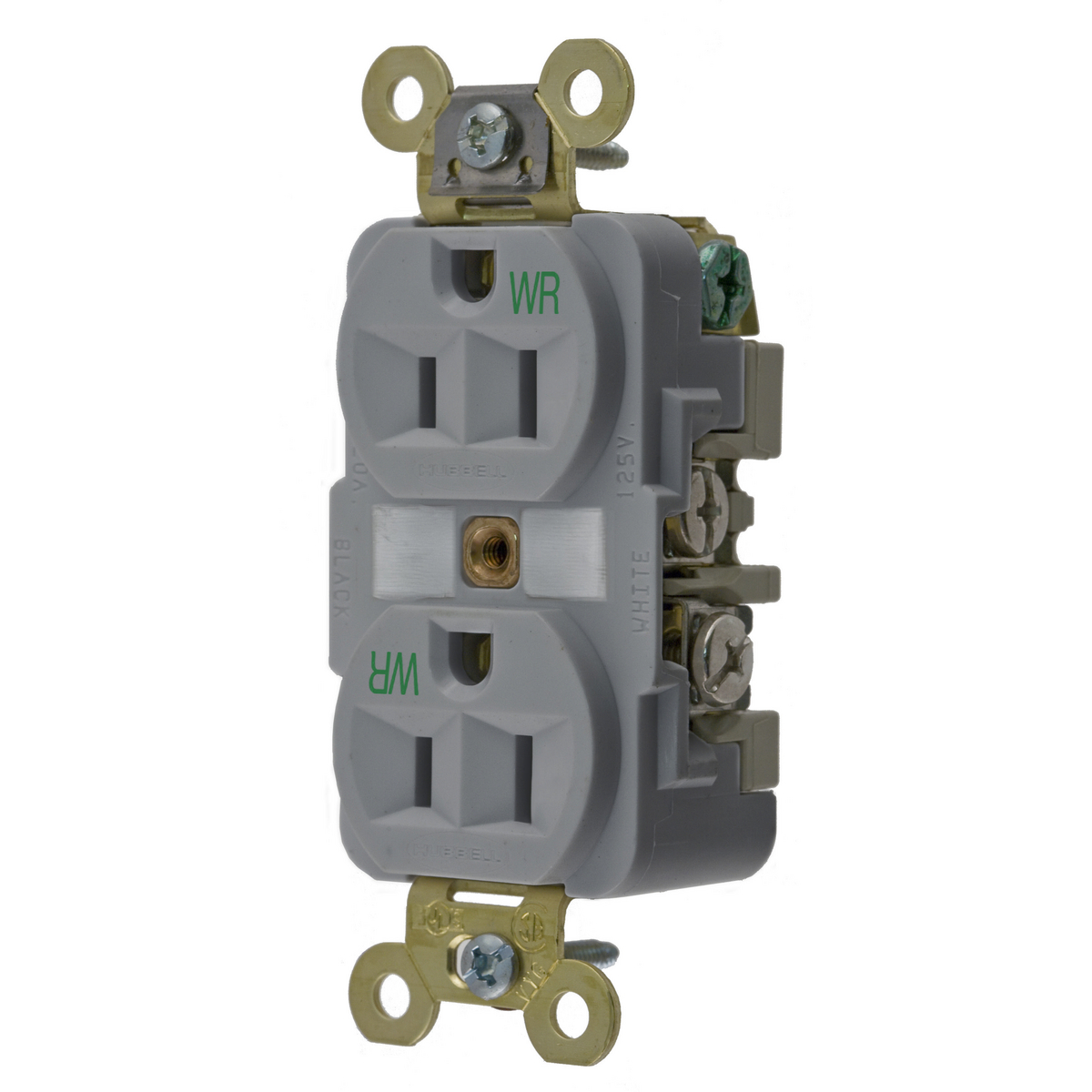

WR RCPT, DUP, SB, HD SPEC, 15A 125V, GY
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
WR RCPT, DUP, SB, HD SPEC, 15A 125V, GY
SKU763679
MFGR #HBL5262GYWR
Your Cost: $34.82/ea
Wiring Device-Kellems HBL® Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding Standard Traditional Weather Resistant, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Nylon, Gray, 3.28 in H x 1.65 in W x 1.19 in D
Wiring Device-Kellems HBL® Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding Standard Traditional Weather Resistant, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Industrial/Specification Grade, -40 to 75 deg C, Back and Side Wired/Screw Terminal, Nylon, Gray, 3.28 in H x 1.65 in W x 1.19 in D
Application Extra Heavy Duty Specification Grade ARRA Compliant C Buy American Compliant C Catalog Number HBL5262GYWR Connection Back and Side Wired Country of Origin PR Currency USD Dielectric Strength Withstands 2,000V minimum Dimensions 3.28 in H x 1.65 in W x 1.19 in D Environmental Conditions Weather Resistant EU RoHS Indicator N Grade Industrial/Specification Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height 1.54 in Height [Metric] 3.9116 cm Horsepower 1/2 hp Length 4.16 in Length [Metric] 10.5664 cm Material Thermoplastic Mounting Screw Mount NEMA Rating 5-15R Number Of Poles 2 Phase 1 Returnable N Size 3.28 in x 1.65 in x 1.19 in Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Standards ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42 File No. 285Federal Specification W-C-596NEMA WD1/WD5/WD6UL 498 File No. E2186 Sub Brand Straight Blade Devices Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Screw Type Weather Resistant UNSPSC 39121406 UPC 11 78358532051 UPC 12 783585320519 Wattage 1,875 W Width 1.79 in Width [Metric] 4.5466 cm Wire Size #14 AWG to #10 AWG Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 15 A Color Gray Number of Wires 3 Voltage Rating 125 VAC Extra Heavy Duty Specification Grade Weather Resistant- Self Grounding One piece brass ground strap Exclusive bypass contact design for greater contact force and reduced heat buildup Barbed assembly arms reduce possibility of face/base separation Finder groove face
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Extra Heavy Duty Specification Grade |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL5262GYWR |
| Connection | Back and Side Wired |
| Country of Origin | PR |
| Currency | USD |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in H x 1.65 in W x 1.19 in D |
| Environmental Conditions | Weather Resistant |
| EU RoHS Indicator | N |
| Grade | Industrial/Specification |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height | 1.54 in |
| Height [Metric] | 3.9116 cm |
| Horsepower | 1/2 hp |
| Length | 4.16 in |
| Length [Metric] | 10.5664 cm |
| Material | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Size | 3.28 in x 1.65 in x 1.19 in |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Standards | ARRA CompliantBuy American Act CompliantCSA C22.2 No. 42 File No. 285Federal Specification W-C-596NEMA WD1/WD5/WD6UL 498 File No. E2186 |
| Sub Brand | Straight Blade Devices |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired Screw |
| Type | Weather Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78358532051 |
| UPC 12 | 783585320519 |
| Wattage | 1,875 W |
| Width | 1.79 in |
| Width [Metric] | 4.5466 cm |
| Wire Size | #14 AWG to #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 15 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Extra Heavy Duty Specification Grade |
| Weather Resistant- Self Grounding |
| One piece brass ground strap |
| Exclusive bypass contact design for greater contact force and reduced heat buildup |
| Barbed assembly arms reduce possibility of face/base separation |
| Finder groove face |
