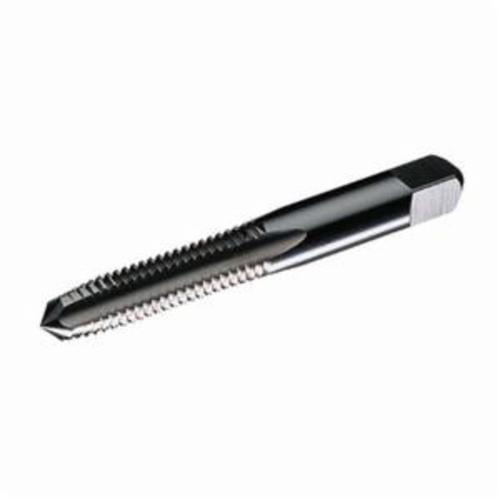

WIDIA™ GTD™ 5303/2303 General Purpose Straight Flute Tap, Imperial, 1/2-13, UNC Thread, 4 Flutes, 2B/3B, Plug, HSS
Straight Flute Taps
897249
MFG #: 2866262
WIDIA™
14.73000
/ ea
WIDIA™ GTD™ Straight Flute Tap, General Purpose, Series: 5303/2303, Measurement System Imperial, 1/2-13, UNC, Plug Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B/3B, Right Hand Cutting, 1.66 in Thread Length, 3.38 in Overall Length, 0.367 in Shank Dia
- Features
| Most popular style of tap |
| Manufactured from select high speed steel for increased wear life |
| Can be used by hand or for tapping under power |
| Versatile taps for use in general machine tapping or CNC tapping applications |
| Hand taps store chips in their flutes next to the chamfered teeth during the threading operation |
| Uncoated taps are recommended for non-ferrous materials and cast iron |
| Coolant flood |
| 3.5P-5P chamfer |
| H1 thread limit |
