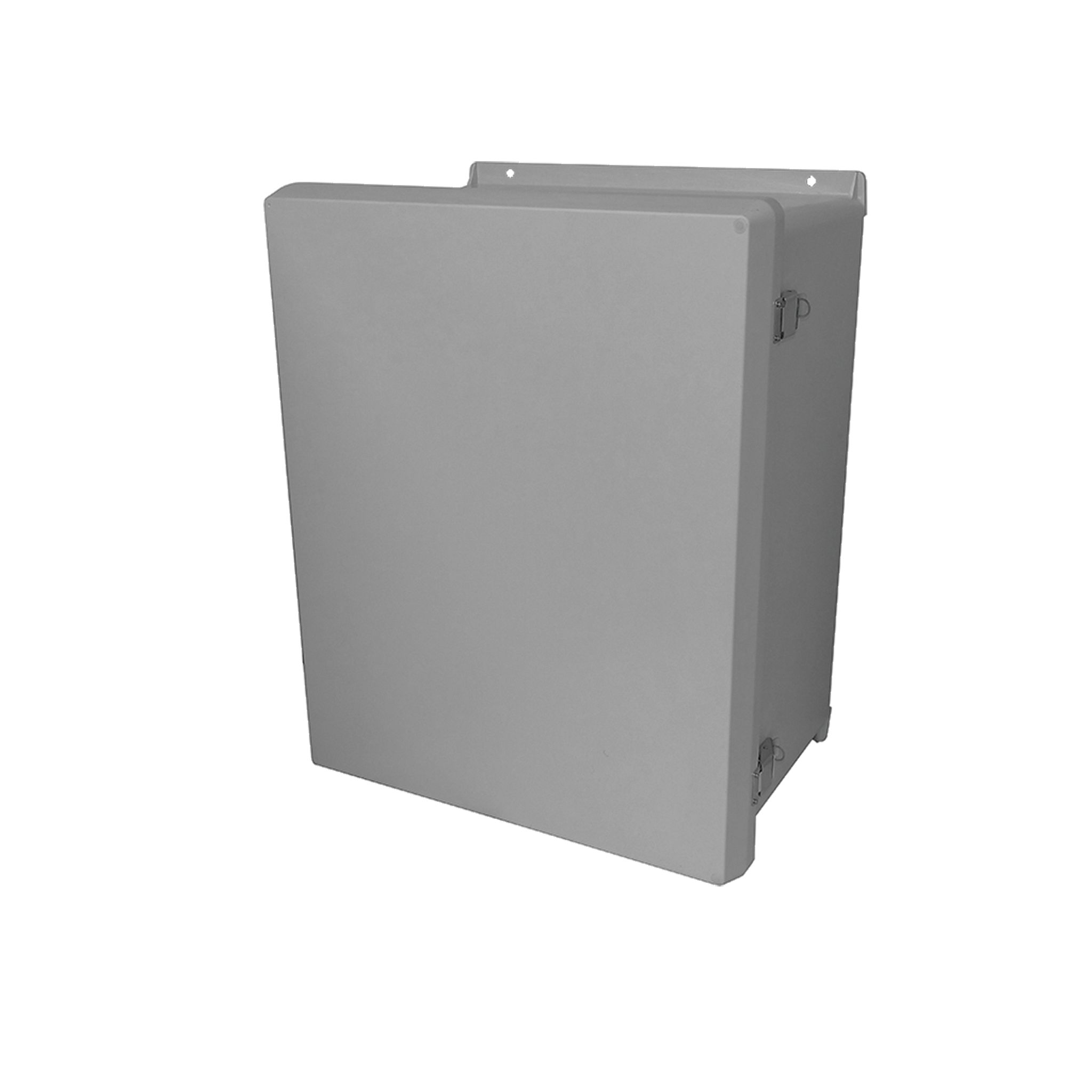

Vynckier Enclosure Systems VJ1412HWPL2 Vynckier Enclosure Systems VJ Series Wall Mount Enclosure With Stainless Steel Piano Hinge, 15.32 in L x 13.32 in W
Wall Mount Enclosures
1411513
MFG #: VJ1412HWPL2
nVent HOFFMAN
272.75000
/ pc
Vynckier Enclosure Systems Wall Mount Enclosure, Series: VJ Series, 15.32 in Length, 13.32 in Width, 6.65 in Depth, NEMA 3/3R/4/4X/12/13, Hinged Cover, Padlock Latch Lock, Wall Mount, -58 to 302 deg F, Fiberglass
- Catalog URL - Vynckier_Enclosure_Systems_MP1008A_Catalog.pdf(Catalog URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_A8LEM5V6PGYJD2U0.pdf(Install Instructions 1 URL)
- Spec Sheet URL - md_TTl13wH5V594oTEp.jpg.pdf?v=1(Spec Sheet URL)
- Tech Drawing URL - VJ1412HWPL2.pdf(Tech Drawing URL)
- Video - https://youtube.com/embed/n6o-ygyJlAA(Video)
- Warranty URL - terms-of-sale.pdf(Warranty URL)
- Applications
- Features
| Corrosive Environments; Controls and Drives |
| Features: The VJ Series Consists Of Seven Enclosure Sizes Ranging From 6.000 IN X 6.000 IN To 18.000 IN X 16.000 IN With Varying Depths, 7 Sizes And A Variety Of Configurations; The VJ Series "HWPL" Enclosures Include One Or Two Stainless Steel Padlockable Latches To Secure One Side Of The Cover To The Base And A Stainless Steel Piano Hinge That Secures The Other. Rivets Connect The Hinge To The Cover And Self-Tapping Screws Connect The Screws To The Base; The Bases And Covers Are Made Of Light Gray (RAL7035), Hot Molded Fiberglass Reinforced Polyester (FRP). They Come Complete With UL/CSA Labels And 4 Threaded Inserts For A Mounting Plate; Cover Screw Holes In Corners Are Outside Of The Gasketed Area; Continuous Gaskets Made Of Polyurethane Foam Guarantee Optimal Integrity; The Enclosure Can Be Readily Worked With Conventional Tools Such As Drills, Mills, Saws, |
| Enclosures are maintenance free and corrosion resistant |
| Designed to meet the Joint industrial Council (JIC) standards in the United States |
| Bases and opaque covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures from -50 to 150 deg C and momentary exposure to temperatures up to 200 deg C |
| Gaskets are made from continuously poured polyurethane foam |
| Molded on mounting flanges increase strength |
| Corner ribs reinforce strength in the cover corners |
| (1) stainless steel continuous hinge and (2) stainless steel padlock latches closure system |
