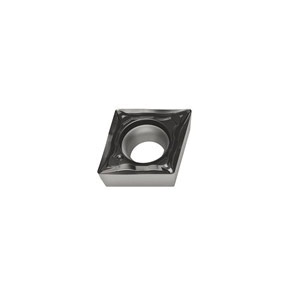

Valenite Tiger-tec® Silver 7134234 Positive Single Sided Turning Insert, CPMT2(1.5)1-FP4 WPP10S ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7134234 Positive Single Sided Turning Insert, CPMT2(1.5)1-FP4 WPP10S ANSI, Rhombic
SKU1032396
MFGR #CPMT2(1.5)1-FP4 WPP10S
Your Cost: $10.63/ea
List: With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code CPMT2(1.5)1-FP4 WPP10S Catalog Number CPMT2(1.5)1-FP4 WPP10S Corner Radius 0.4 mm Finish CVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Included Angle 80 deg ISO Code CPMT060204-FP4 WPP10S Relief Angle 11 deg Sub Brand Tiger-tec® Thickness 2.38 mm Type Positive Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker FP4 Inscribed Circle 6.35 mm Insert Style CPMT Manufacturer's Grade WPP10S Material Carbide Material Grade P Maximum Depth of Cut 1.5 mm Shape Rhombic 40 to 60 deg double countersink hole WPP10S - Free machining steels Long cutting times Maximum wear resistance 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.05 to 0.16 mm feed/rev 6.45 mm cutting edge length
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
ANSI Code | CPMT2(1.5)1-FP4 WPP10S |
Catalog Number | CPMT2(1.5)1-FP4 WPP10S |
Corner Radius | 0.4 mm |
Finish | CVD Coated |
Gross Weight Per Pack | 1 lb |
Hand of Insert | Neutral |
Included Angle | 80 deg |
ISO Code | CPMT060204-FP4 WPP10S |
Relief Angle | 11 deg |
Sub Brand | Tiger-tec® |
Thickness | 2.38 mm |
Type | Positive Single Sided |
Stock Status | NONSTOCK |
Brand | Walter (Valentine) |
Manufacturer | Walter |
Chipbreaker | FP4 |
Inscribed Circle | 6.35 mm |
Insert Style | CPMT |
Manufacturer's Grade | WPP10S |
Material | Carbide |
Material Grade | P |
Maximum Depth of Cut | 1.5 mm |
Shape | Rhombic |
40 to 60 deg double countersink hole |
WPP10S - Free machining steels |
Long cutting times |
Maximum wear resistance |
0.08 to 0.202 mm corner point tolerance |
+/-0.13 mm thickness tolerance |
0.05 to 0.152 mm inscribed circle tolerance |
0.05 to 0.16 mm feed/rev |
6.45 mm cutting edge length |
