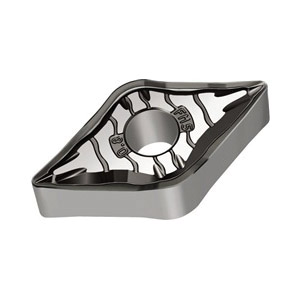

Valenite Tiger-tec® Silver 7091905 Double Sided Negative Turning Insert, DNMG332-FM5 WMP20S ANSI, Rhombic, DNMG Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7091905 Double Sided Negative Turning Insert, DNMG332-FM5 WMP20S ANSI, Rhombic, DNMG Insert
SKUPDW~12584043
MFGR #DNMG332-FM5WMP20S
Your Cost: $27.42/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code DNMG332-FM5 WMP20S Catalog Number DNMG332-FM5WMP20S Corner Radius 0.8 mm Finish CVD-TiCN+Al2O3 Coated Gross Weight Per Pack 0.0100 lb Hole Diameter 0.14 in Included Angle 55 ° ISO Code DNMG110408-FM5 WMP20S Relief Angle 0 ° Series Tiger-tec® Silver Sub Brand Tiger-tec® Thickness 4.76 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker FM5 Cutting Direction Neutral For Use On Steel and Stainless Steel Inscribed Circle 9.525 mm Insert Size 332 Insert Style DNMG Manufacturer's Grade WMP20S Material Carbide Material Grade M, P Maximum Depth of Cut 1.5 mm Rake Negative Seat Size 11 Shape Rhombic KPD001 grade super micrograin PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance Long and stable tool life 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.07 to 0.2 mm feed/rev 11.6 mm cutting edge length
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG332-FM5 WMP20S |
| Catalog Number | DNMG332-FM5WMP20S |
| Corner Radius | 0.8 mm |
| Finish | CVD-TiCN+Al2O3 Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hole Diameter | 0.14 in |
| Included Angle | 55 ° |
| ISO Code | DNMG110408-FM5 WMP20S |
| Relief Angle | 0 ° |
| Series | Tiger-tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | FM5 |
| Cutting Direction | Neutral |
| For Use On | Steel and Stainless Steel |
| Inscribed Circle | 9.525 mm |
| Insert Size | 332 |
| Insert Style | DNMG |
| Manufacturer's Grade | WMP20S |
| Material | Carbide |
| Material Grade | M, P |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| KPD001 grade super micrograin PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance |
| Long and stable tool life |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.07 to 0.2 mm feed/rev |
| 11.6 mm cutting edge length |
