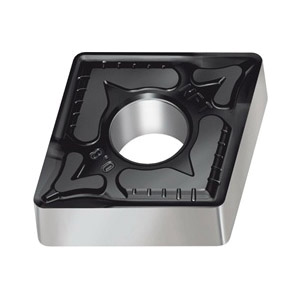

Valenite Tiger-tec® Silver 7053961 Double Sided Negative Turning Insert, CNMG431-NFT WSM20S ANSI, Rhombic, CNMG Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7053961 Double Sided Negative Turning Insert, CNMG431-NFT WSM20S ANSI, Rhombic, CNMG Insert
SKUPDW~12583914
MFGR #CNMG431-NFTWSM20S
Your Cost: $27.15/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code CNMG431-NFT WSM20S Catalog Number CNMG431-NFTWSM20S Corner Radius 0.4 mm Country of Origin DE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 5.16 mm Included Angle 80 deg ISO Code CNMG120404-NFT WSM20S Relief Angle 0 deg Sub Brand Tiger-tec® Thickness 4.76 mm Type Double Sided Negative Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker NFT Inscribed Circle 12.7 mm Insert Style CNMG Manufacturer's Grade WSM20S Material Carbide Material Grade M/N/S Maximum Depth of Cut 1.5 mm Shape Rhombic NFT Geometry - Finishing titanium materials Sharp, fully ground circumference cutting edge, first choice 100 deg corner with roughing geometry implemented with CNMG basic shape Cylindrical hole 2 cutting edges WSM20S - Machining operations on automatic bar machines and multi-spindle machines Applicable on high temperature alloys and austenitic stainless steels 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.08 to 0.17 mm feed/rev 12.9 mm cutting edge length
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG431-NFT WSM20S |
| Catalog Number | CNMG431-NFTWSM20S |
| Corner Radius | 0.4 mm |
| Country of Origin | DE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 5.16 mm |
| Included Angle | 80 deg |
| ISO Code | CNMG120404-NFT WSM20S |
| Relief Angle | 0 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Type | Double Sided Negative |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | NFT |
| Inscribed Circle | 12.7 mm |
| Insert Style | CNMG |
| Manufacturer's Grade | WSM20S |
| Material | Carbide |
| Material Grade | M/N/S |
| Maximum Depth of Cut | 1.5 mm |
| Shape | Rhombic |
| NFT Geometry - Finishing titanium materials |
| Sharp, fully ground circumference cutting edge, first choice |
| 100 deg corner with roughing geometry implemented with CNMG basic shape |
| Cylindrical hole |
| 2 cutting edges |
| WSM20S - Machining operations on automatic bar machines and multi-spindle machines |
| Applicable on high temperature alloys and austenitic stainless steels |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.08 to 0.17 mm feed/rev |
| 12.9 mm cutting edge length |
