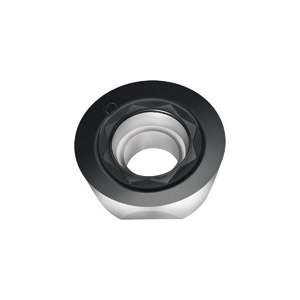

Valenite Tiger-tec® Silver 6949981 Positive Indexable Milling Insert, ROMX10T3M0-F67 WSP45S ANSI, Round, ROMX Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6949981 Positive Indexable Milling Insert, ROMX10T3M0-F67 WSP45S ANSI, Round, ROMX Insert
SKUPDW~12067112
MFGR #ROMX10T3M0-F67WSP45S
$/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ROMX10T3M0-F67 WSP45S Catalog Number ROMX10T3M0-F67WSP45S Corner Radius 5 mm Country of Origin DE Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 4.4 mm ISO Code ROMX10T3M0-F67 WSP45S Lead Angle 11 deg Sub Brand Tiger-tec® Thickness 3.97 mm Type Positive Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F67 Inscribed Circle 10 mm Insert Style Tiger?tec® Silver Manufacturer's Grade WSP45S Material Carbide Material Grade M/P/S Rake 16 deg Shape Round F67 Geometry - The easy cutting one For good machining conditions Low cutting force Medium feed rates 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 4 cutting edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | ROMX10T3M0-F67 WSP45S |
| Catalog Number | ROMX10T3M0-F67WSP45S |
| Corner Radius | 5 mm |
| Country of Origin | DE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| ISO Code | ROMX10T3M0-F67 WSP45S |
| Lead Angle | 11 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 3.97 mm |
| Type | Positive |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F67 |
| Inscribed Circle | 10 mm |
| Insert Style | Tiger?tec® Silver |
| Manufacturer's Grade | WSP45S |
| Material | Carbide |
| Material Grade | M/P/S |
| Rake | 16 deg |
| Shape | Round |
| F67 Geometry - The easy cutting one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
