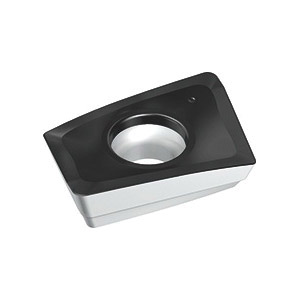

Valenite Tiger-tec® Silver 6796130 Positive Indexable Milling Insert, LDMW14T308R-A57 WKP35S ANSI, Rhombic, LDMW Insert
LDMW Milling Inserts
PDW~12066297
MFG #: LDMW14T308R-A57WKP35S
Walter (Valentine)
16.80000
/ ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For unfavorable machining conditions |
| Maximum cutting edge stability |
| High feed rates |
| Straight border (no wave on the flank face) |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
