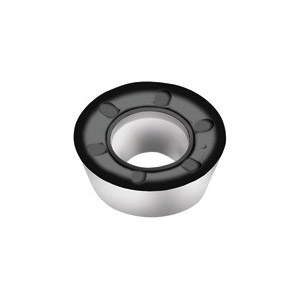

Valenite Tiger-tec® Silver 6071193 Positive Single Sided Indexable Milling Insert, RDMT1605M0-D57 WKP25S ANSI, Round
RDMT Milling Inserts
PDW~9957412
MFG #: RDMT1605M0-D57WKP25S
Walter (Valentine)
20.30000
/ ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 6 cutting edges |
| 40 to 60 deg double countersink hole |
