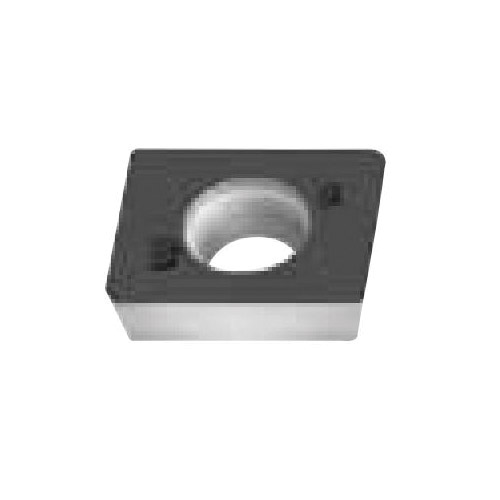

Valenite Tiger-tec® Silver 5918308 Positive Indexable Milling Insert, LPMW150412TR-A27 WKP35S ANSI, Rhombic, Carbide
LPMW Milling Inserts
PDW~9952475
MFG #: LPMW150412TR-A27WKP35S
Walter (Valentine)
20.90000
/ ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For unfavorable machining conditions |
| Maximum cutting edge stability |
| High feed rates |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
